SpeedWatch: Predictive Analysis of Speeding Incidences by Vehicle Type, Location, and Time
Authors:Morgan Mohan, David Moroney, Ashley Nilson, Anita Pathak
Executive Summary
Portland's roadways are grappling with a significant challenge: an uptick in speeding incidents despite the efforts of the Portland Transportation Department to enforce speed limit regulations. These incidents present a clear threat to road safety, resulting in accidents, injuries, and even fatalities. To tackle this pressing issue, our project undertook a comprehensive analysis of data sourced from the Portland Transportation Department, focusing on speed, volume, and classes of vehicles.
Our methodology encompassed several key stages. Initially, we merged datasets related to speed, traffic volume, and vehicle classes. Through extensive exploratory data analysis, we sought to understand the distribution of speed, traffic behavior by day, disparities between posted speed limits and actual speeds, and historical trends in overspeeding. Feature selection was then carried out to identify relevant variables for modeling and an initial Decision Tree model was used to further reduce predictor varaibles. Subsequently, we implemented Logistic Regression, K-Nearest Neighbors, and a Stacked Ensemble model to predict speeding incidents.
Our analysis yielded critical insights into the nature and extent of speeding incidents on Portland's roadways. We identified the top locations where vehicles consistently exceeded posted speed limits and observed fluctuations in overspeeding trends over the years. Notably, certain areas such as SE Division St E of SE 33rd Ave ranked highest for mean speed exceeding limits, indicating areas of particular concern.
Moreover, we identified key predictors for speeding behaviors, including traffic volume and time of day. Predictive modeling using Decision Tree Classifier and Logistic Regression demonstrated strong performance metrics, with the logistic regression model achieving an accuracy of 0.802 and a recall of 1 for both training and testing datasets.
These findings have significant implications for improving road safety and transportation management in Portland. By pinpointing areas with high instances of speeding and understanding the factors driving these behaviors, transportation authorities can implement targeted interventions to mitigate risks and enhance road safety. Possible interventions include deploying speed enforcement measures such as speed cameras or increased police patrols in identified hotspot areas. Additionally, insights gleaned from predictive modeling can inform the development of proactive strategies to anticipate and address future challenges related to speeding incidents.
Our project underscores the importance of data-driven approaches in tackling speeding incidents and enhancing road safety. By leveraging comprehensive analysis of traffic data, stakeholders can make informed decisions to optimize transportation management and improve the quality of life for Portland residents. Moving forward, continued collaboration between transportation authorities, law enforcement agencies, and urban planners will be essential for the successful implementation of road safety initiatives.
Introduction
Speeding incidents on Portland's roadways have become a prominent and persistent challenge, despite concerted efforts by the Portland Transportation Department to enforce speed limit regulations. These incidents not only pose a threat to public safety but also impede effective mitigation measures. In response to this ongoing issue, our project endeavors to conduct a thorough analysis of data sourced from the Portland Transportation Department, focusing specifically on variables such as speed, volume, and vehicle classifications.
The urgency of addressing this issue cannot be overstated, as speeding incidents contribute significantly to road safety concerns, including a rise in accidents, injuries, and fatalities. Despite the department's efforts, instances of vehicles surpassing assigned speed limits persist, necessitating a deeper understanding of the underlying factors driving such behavior.
By merging and analyzing datasets related to speed, volume, and vehicle classes, our project aims to identify key areas where drivers tend to overspeed and discern trends in overspeeding over time. Additionally, we seek to explore correlations between speeding incidents and various factors such as location, types of vehicles, time of day, and speed limits.
Ultimately, the objective of our analysis is to provide actionable insights that can support the Portland Transportation Department's efforts in reducing speeding incidents, enhancing road safety, and ultimately improving the quality of life for Portland residents. Through a data-driven approach, we aim to uncover valuable information that can inform targeted interventions and strategies to address the root causes of speeding behaviors on Portland's roadways. By emphasizing the gravity of the issue and the necessity for a comprehensive analysis, this introduction sets the stage for the subsequent sections of our project, which delve into our methodology, findings, and recommendations.
Problem Statement
What are the significant threats to road safety posed by the prevalence of speeding vehicles in Portland despite existing speed limit regulations, instances of vehicles exceeding assigned speed limits persist, leading to a range of road safety issues including accidents, injuries, and fatalities. What are the underlying factors contributing to speeding behaviors hampers effective mitigation efforts by the Portland Transportation Department. The underlying factors contributing to speeding behaviors are multifaceted, encompassing individual, environmental, and societal factors. These include driver attitudes, perceptions of risk, roadway characteristics, inadequate signage, societal norms, and limited enforcement resources. These factors collectively create a complex landscape that hampers the department's ability to effectively address speeding incidents.
In light of these challenges, the problem statement for this report is to comprehensively analyze data sourced from the Portland Transportation Department to identify areas where drivers tend to overspeed and discern trends in overspeeding over the years. Additionally, the report aims to explore correlations between speeding and various factors such as location, types of vehicles, time, and speed limits. Ultimately, the analysis aims to provide actionable insights to support efforts in reducing speeding incidents, enhancing road safety, and improving the quality of life for Portland residents.
Methodology
Data Source & Description
The data was compiled from three CSV files, all of which were obtained from the City of Portland, Oregon's PortlandMaps Open Data system, powered by ArcGIS. The three CSVs were from:
- Traffic Volume Count: Information on the volume of traffic flow observed at various locations within Portland. It includes data on the number of vehicles passing through specific points over designated time periods, offering insights into traffic patterns and congestion levels.
- Vehicle Class Count: The distribution of vehicles by class or type observed on Portland's roadways. It categorizes vehicles into different classes such as cars, trucks, motorcycles, and bicycles, providing valuable information on the composition of the traffic fleet.
- Traffic Speed Count Count: Data on the speeds at which vehicles are traveling along different segments of Portland's road network. It includes information on both average and individual vehicle speeds, allowing for the analysis of speeding trends and patterns across various locations and times.
Each CSV had multiple shared variables, mostly related to the date, location, and other identifying elements of each sample count. The different CSV's each had their own unique variables, as well, that were specific to what was being counted. For example, Traffic Volume Count provides details on AM volume vs. PM volumes, Vehicle Class Count includes percentages of trucks vs. cars, and Traffic Speed Count Count provides percentages of passing traffic that fall into ranges based on the local speed limit.
Data Preparation
Prior to conducting any sort of analysis, we needed to clean and combine the three CSV files. This process incolved the following steps:
Read in Data
After reading in each CSV as its own dataframe, we dropped the following columns in each dataframe:
* StartTime
* EndTime
* ChannelNum
* NumChannels
* Comment
* LocationClass
* Conditions
* DeviceRef
These columns were specifically selected because they were either duplicative, had minimal value to our end analysis, or frequently had no data.
Establish IDs
In reviewing the dataframes we were able to establish that the same sample counts were used to provide the data for each CSV. This was determined because the values for different identifiers, such as location and date, were the same when the samples between different dataframe had matching values for the beginning of CountID (a CSV-specific identifier composed of 8 digits followed by by a CSV label) and Bound (the traffic direction).
With that information, we were able to establish identifiers that connected samples between the three dataframes. To do so, we cleaned the Bound values as they had varying capitalization and other structural differences, then connected that value to the beginning digits of the CountID. For example, the same sample count in each dataframe had the following CountID and Bound values: * Speed: 10010422.SP2 – E * Class: 10010422.CL2 – E * Volume: 10010422.VL2 – E
We were then able to create a unique ID in each dataframe for these samples that matched across the three dataframes: 10010422_E
We needed to include the Bound element because the same CountID would be used multiple times for cross-directional traffic. For example, in the instance provided above, each dataframe had another sample with an identical CountID, but the Bound value was W (rather than E). As such, that sample was given the ID of 10010422_W.
Merge Dataframes
After the unique identifiers were established, we could merge the three dataframes into one. For this, we chose the newly created ID column, along with StartDate and EndDate as the merge points, while all other duplicated columns were given a suffix that included the source dataframe's column name. This ensured we could continue reviewing the unique information in each dataframe prior to removing duplicative details.
After the initial merge, there were 440 samples with duplicate IDs from a total of 22,736 samples. As such, we dropped the rows with duplicate IDs.
Following the removal of the duplicated IDs, we iterated through the dataframe to fill in NAN values in columns repeated in multiple dataframes with the values from the other dataframes (i.e. if the Speed dataframe was missing a value in LocationID, but the Volume dataframe contained that value, then the value from Volume replaced the NAN for Speed).
Once we ensured there were no missing values in any of the duplicated variables, and ran through the input values to check for consistancy, we selected the columns imported from the Speed dataframe as the "source of truth" and removed the redundant columns.
Following this, we reviewed samples with missing values that could be calculated and filled in those values where it made sense. For example, the values in PctCars and PctTrucks always added up to 1, so if one value was missing it could be calculated by subtracting the provided value from 1.
Lastly, we removed remaining samples with NAN values. This had the impact of reducing the final dataframe from about 20,000 samples to just over 7,000. However, a large reason for this is that the Class dataframe had just over 7,000 samples so there was a large discrepency between that dataframe's samples and the other two.

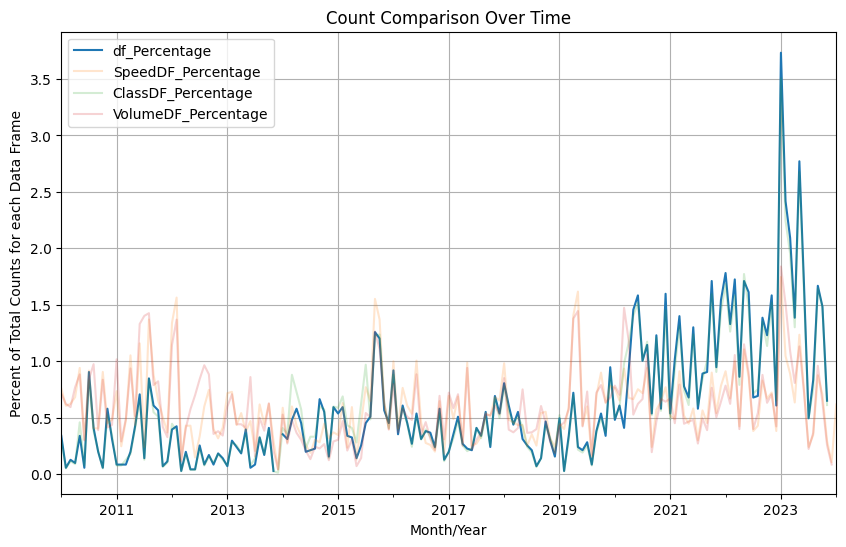

To ensure we didn't have large gaps in our timeline data, though, we also ran an analysis comparing the four dataframes (Speed, Volume, Class, and the merged dataframe) and their relative counts by turning the counts for each month into a percent of the total count for that dataframe. As shown in the gragh below, the darker blue line representing the merged dataframe has the same approximate amount of counts each month as the other three, even though the final total count is much smaller:
Data Exploration

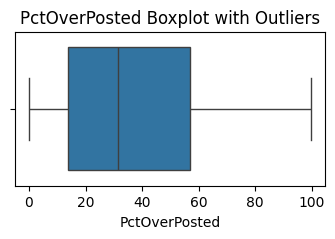

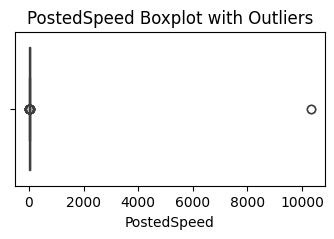

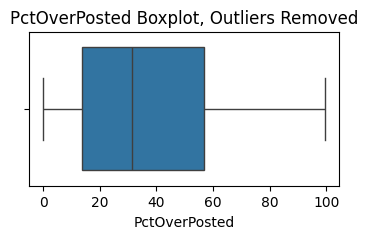

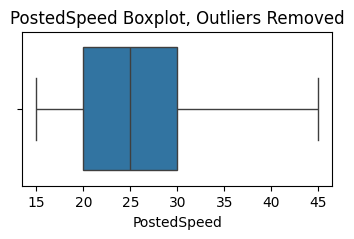

Prior to feature selection the newly merged data frame was explored for further understanding. Firstly, the distribution of values within the Posted Speed and PctOverPosted columns were explored utilizing the pyplot package for boxplots and simple IQR calculations to remove outliers. The following boxplots depict PctOverPosted and PostedSpeed ebfore and after outlier removal:
Next, aggregate statistics were calculated by Start Day for PctOverPosted, PctOverPosted10, and ADTVolume to explore the variation in speeding and traffic behavior by day. In order to better understand the difference between posted speed limits and the reported speed percentiles, differences were calculated for each data point. The top 15 largest differences are displayed below, grouped by location description:

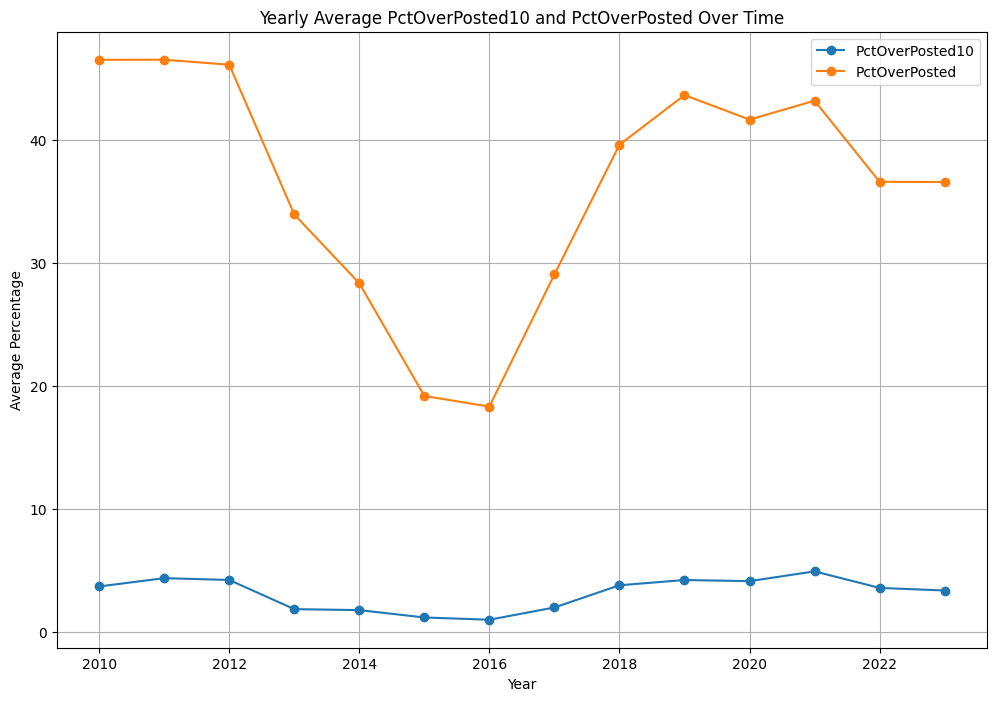

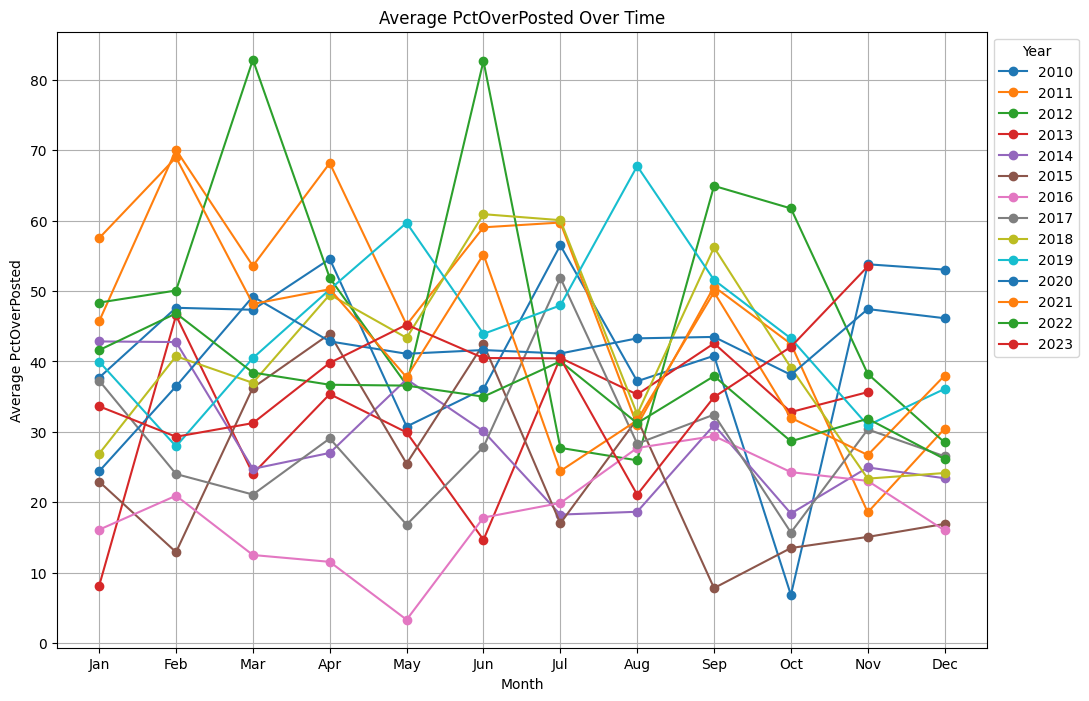

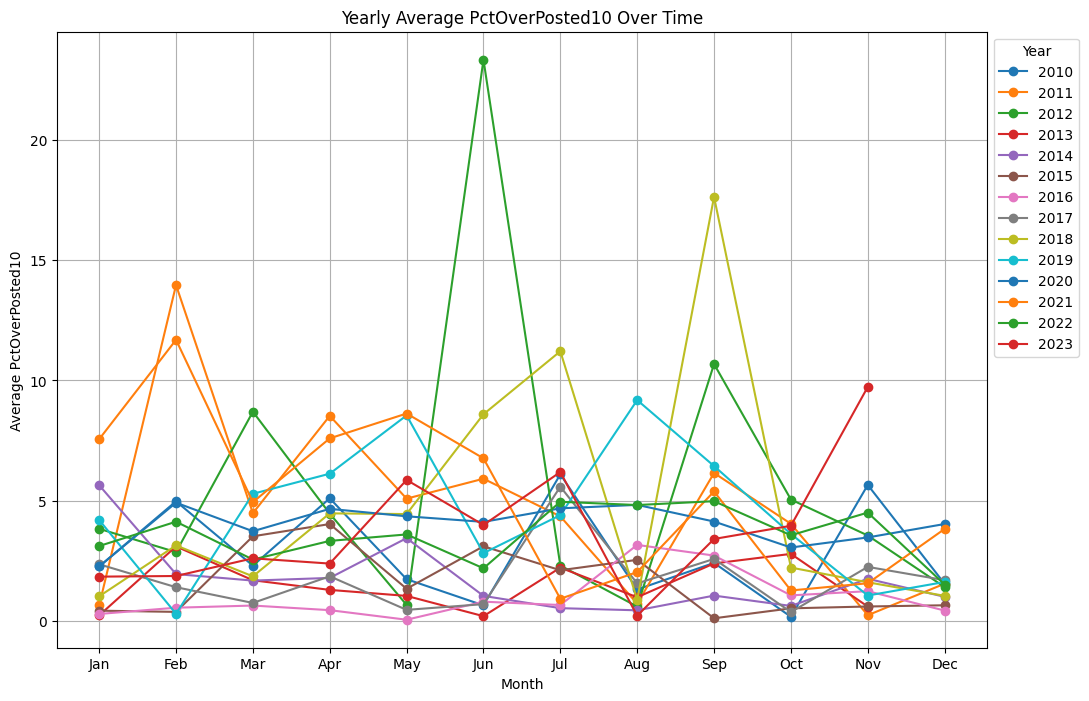

Finally, the following graphs depicting PctOverPosted and PctOverPosted10 over month and year timeframes were created using pyplot to uncover any potential historical or seasonal trends within the data:

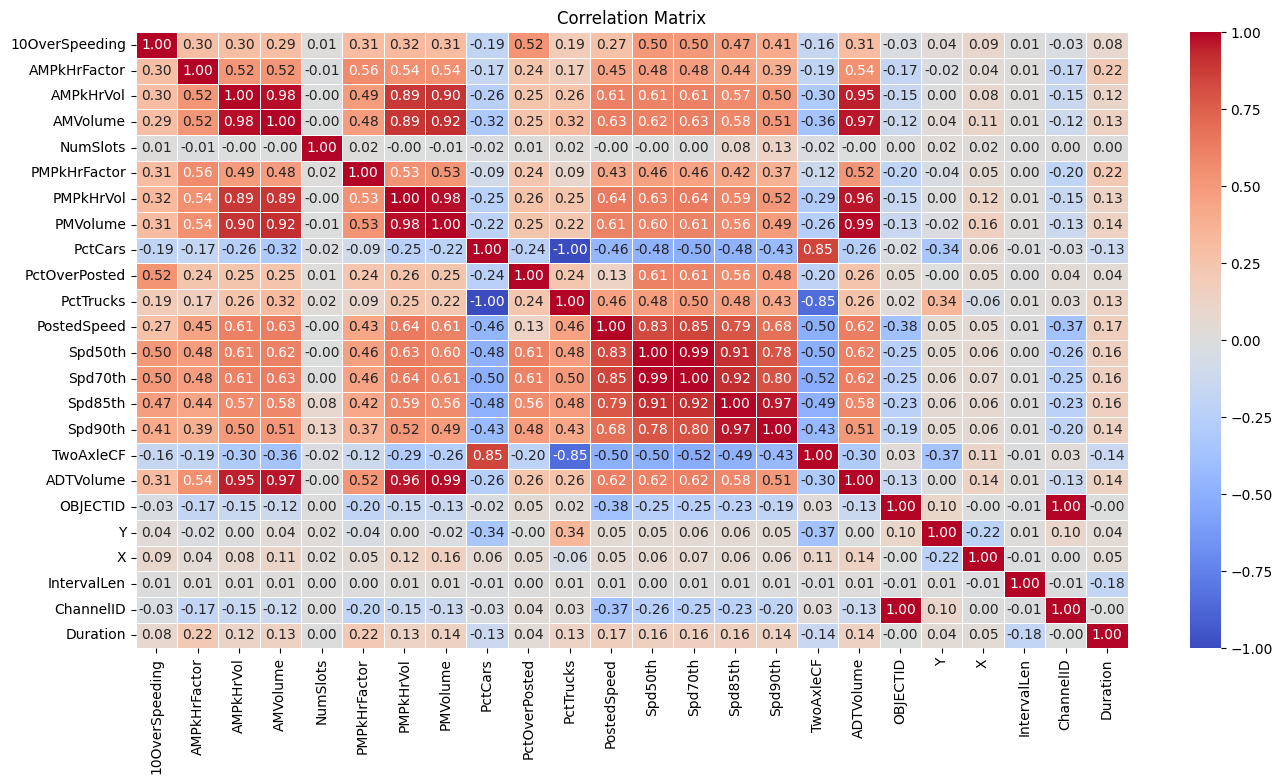

Feature Selection
PctOverPosted10 was identified as the initial target variable for this analysis however, after early modelling, the team determined to create a new binary classification from PctOverPosted10 for greater simplicity and explainability. This binary variable is 1 for any row with a PctOverPosted10 greater than 0, otherwise 0. In other words, classifying any measurements where speeds 10MPH or greater over the speed limit were measured. This new binary variable was named 10OverSpeeding and was utilized as the target variable in the final analysis. Future research using this same dataset could vary the cuytoff threshold for this binary variable in order to better target the most severe speeding cases.

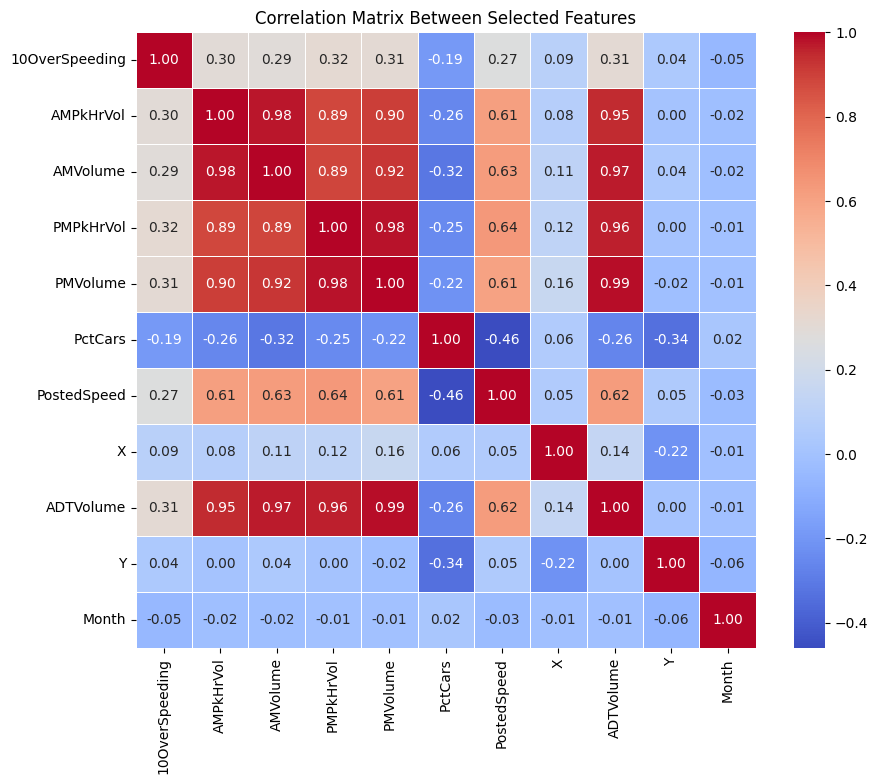

An initial list of features of interest was defined including the following variables: 10OverSpeeding, AMPkHrVol, AMVolume, PMPkHrVol, PMVolume, PctCars, PostedSpeed, X, ADTVolume, Y, StartDay, and Month. Dummy variables were created for StartDay using the pandas get_dummies() function. These features were then run through automated selection where scikit-learn was used to rank them by importance in the Recursive Feature Elimination (RFE) process with a Decision Tree classifier as the estimator. The top 10 features were maintained and the following final correlation matrix was generated using matplotlib and seaborn for heatmap visualization:
Modeling
Decision Tree
The first model analyzed in this project was a Decision Tree Classifier. First, the data were split into training and testing sets using scikit-learn's train_test_split function for the features defined in the previous section. The data was divided into 80% training and 20% testing with stratification to ensure the class distribution between sets was not imbalanced. Next, scikit-learn's Grid Search Cross-Validation was used to determine the ideal parameters for the Decision Tree. The Tree was then fit on the training data, and predicted on the training and testing sets. The accuracy of the model was assessed using scikit-learn's accuracy_score, precision_score, and recall_score for both training and testing sets. A confusion matrix was also generated for both sets using pyplot and seaborn packages, as shown here:
Based on the Decision Tree rules, the predictive features for the next models were narrowed down from 10 to just the top 5. The feature's importance was calculated and then ranked. The data was then scaled using scikit-learn's StandardScaler and the training and testing sets were redefined using the new top 5 features.
Logistic Regression

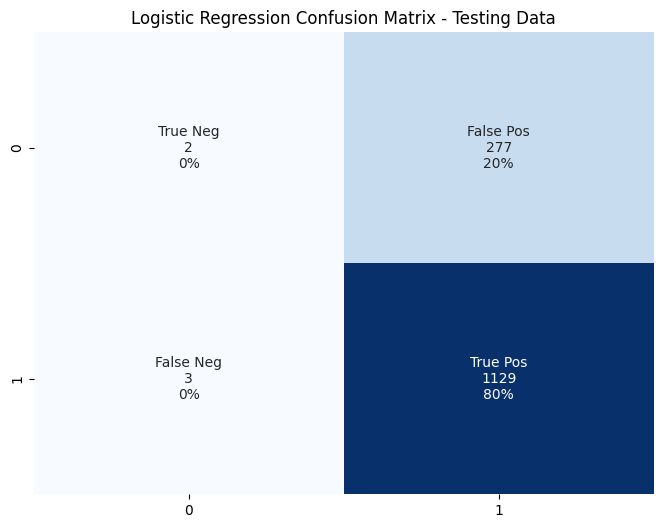

A Logistic Regression model was fit on the training data for the top 5 features defined above. The data was divided into 80% training and 20% testing sets with stratification just like the previous Decision Tree model. Predictions were then made on both the training and testing sets. To evaluate the model's performance and ability to generalize on new data confusion matrices plus accuracy, precision, and recall scores were calculated and printed for both sets. The following confusion matrix depicts the predictive outcomes from the Logistic Regressions's testing set:
K-Nearest Neighbors

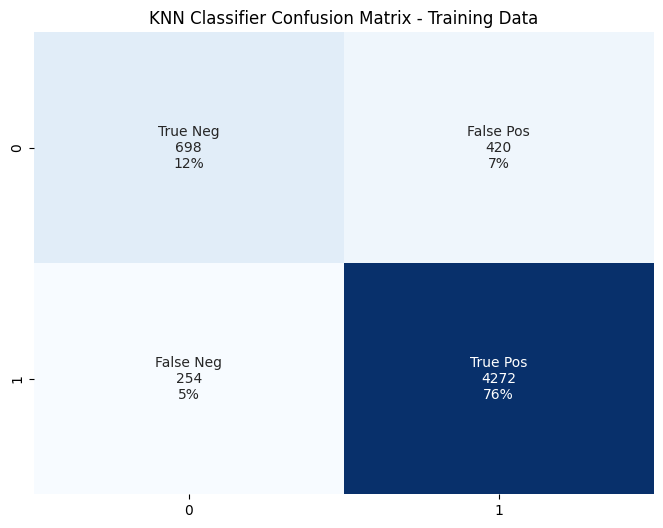

Following the procedure of the Logistic Regression analysis, a K-NN Classification model was also utilized. The K-NN model was fit using the same training set as defined above and then predictions were made on both the training and testing sets to assess performance and generalizability. Predictions from the model were then visualized using confusion matrices, with the testing matrix shown here:
Stacked Ensemble
The final model was a stacked ensemble, which combined the three preceding models to develop a robust model encompassing the strengths of the prior three.
With the model, we were able to attain the following results: * Accuracy: .863 * Precision: .89 * Recall: .947

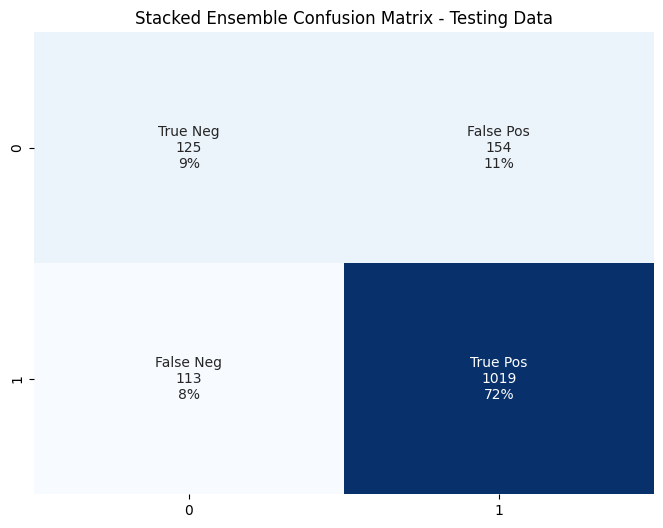

The confusion matrix shown here demonstrates the overall model reliability:
The final performance indicators for each model, shown below, demonstrate the benefit of using the stacked ensemble, with the prior three models as its backbone, for our final model:
\begin{array}{ c c c c }
\textbf{Model} & \textbf{Accuracy} & \textbf{Precision} & \textbf{Recall} \
Decision Tree & 0.836 & 0.883 & 0.917 \
Logistic Regression & 0.802 & 0.802 & 1.0 \
KNN Classifier & 0.828 & 0.884 & 0.905 \
Stacked Ensemble & 0.863 & 0.890 & 0.947
\end{array}
Analysis & Findings
The analysis and findings reveal critical insights into speeding incidents on Portland's roadways, derived from comprehensive examination of traffic volume, vehicle class, and traffic speed data sets. Through this analysis, we identified the top 15 locations with the greatest mean speed exceeding posted limits, comparing them with overspeed percentiles. Notably, SE Division St E of SE 33rd Ave ranked highest, with SE 112th Ave S of SE Ogden St and Columbia Way - Columbia Blvd Ramp W of N Columbia Blvd following closely. Additionally, we examined the top 15 locations with the highest speeds for the 90th percentile, further highlighting areas of concern for overspeeding. Moreover, historical trends from 2010 to 2023 indicated fluctuations in overspeeding, with peak incidents occurring during AM and PM rush hours.
Predictive modeling using decision trees, logistic regression, K-NN, and stacked ensembles identified key predictors such as AM Volume, X, Y, ADT Volume, and Pct Cars. Our models demonstrated strong performance metrics, with logistic regression showing an accuracy of 0.802, precision of 0.802, and recall of 1 for both training and testing data sets. Similarly, the KNN classifier exhibited robust performance with comparable metrics. The greatest overall accuracy was seen in the stacked ensemble model which had an accuracy of 0.863, precision of 0.890, and recall of 0.947. The comparison of all models yielded valuable insights, with the stacked ensemble having the greatest overall performance. This high performance on the testing datasets indicates that the models are able to generalize well to new data. This could make them useful tools for predicting whether overspeeding incidences will occur based on key traffic and location metrics. Overall, these findings underscore the importance of data-driven approaches in understanding and addressing speeding behaviors to enhance road safety in Portland.
Business Applications
The findings and analysis presented in this project hold significant implications for improving road safety and transportation management in Portland. By identifying key locations with high instances of speeding and understanding the underlying factors contributing to these behaviors, transportation authorities can implement targeted interventions to mitigate risks and enhance road safety. These interventions may include the deployment of speed enforcement measures, such as speed cameras or increased police patrols, in identified hotspot areas. Additionally, the insights gained from historical trends and predictive modeling can inform the development of proactive strategies to anticipate and address future challenges related to speeding incidents.
The identification of key predictors for speeding behaviors, such as traffic volume and time of day, can inform urban planning and infrastructure development initiatives. For instance, city planners can use this information to optimize traffic flow and design safer roadways that effectively accommodate varying traffic conditions. Moreover, the predictive models developed in this project can serve as valuable decision support tools for transportation agencies, enabling them to allocate resources more efficiently and prioritize interventions based on the likelihood of speeding incidents occurring in specific locations.
Recommendations
Based on the analysis and findings presented in this project, several key recommendations can be made to Portland's Bureau of Transportation to improve road safety and address the issue of speeding incidents. Firstly, targeted enforcement measures may be implemented using the insights gained from the identification of high-speeding locations. Enforcement measures could include speed cameras or increased police presence in hotspot areas aimed at deterring speeding behaviors. Secondly, utilizing insights from traffic volume and vehicle classes, infrastructure investments may be made in targeted areas to calm traffic using features such as speed bumps or traffic islands. Most importantly, this project acts as a proof of concept that data driven decision-making is possible from the wealth of data collected by the City of Portland. Our key recommendation is that PBOT continues to update and maintain this data, and further supplementing it with other relevant factors to inform decision-making processes related to road safety and transportation management. While the data currently available provides some helpful insights, any additional data which can be incorporated for speed enforcement measures, infrastructure updates, or other key influences will be crucial for measuring and predicting future success. Finally, PBOT should continue to collaborate closely with community stakeholders and provide regular data updates and reports. Collaborative efforts can help build consensus around proposed interventions and ensure their effectiveness in addressing community concerns.
Conclusion
The project "Predictive Analysis of Speeding Incidents by Vehicle Type, Location, and Time" has provided valuable insights into the pressing issue of speeding incidents on Portland's roadways. Through comprehensive data analysis and predictive modeling, we have identified key factors contributing to speeding behaviors, highlighted high-speeding locations, and assessed historical trends in speeding incidents over time. Our findings underscore the urgent need for targeted interventions to address speeding and enhance road safety in Portland.
This project has laid the foundation for evidence-based interventions to improve road safety and enhance the quality of life for Portland residents and visitors. By leveraging data analytics and predictive modeling, we can work towards creating a safer and more sustainable transportation system that benefits all members of the community.
References
Traffic Counts
Portland.gov
NE Ainsworth Traffic Calming
Projects
Code Appendix
Preliminaries
# import packages
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
from tabulate import tabulate
from sklearn.linear_model import LinearRegression, LogisticRegression
from sklearn.model_selection import train_test_split
from statsmodels.stats.outliers_influence import variance_inflation_factor
from datetime import datetime as dt
from sklearn.feature_selection import RFE
from sklearn.ensemble import StackingClassifier
from sklearn.ensemble import RandomForestRegressor
from sklearn.metrics import mean_squared_error, r2_score, accuracy_score, confusion_matrix, precision_score, recall_score
from sklearn.tree import DecisionTreeClassifier, export_text, plot_tree
from sklearn.ensemble import RandomForestRegressor
from sklearn.neighbors import KNeighborsRegressor, KNeighborsClassifier
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split, GridSearchCV
from prettytable import PrettyTable
# set analysis date/time
now = dt.now()
print ("Analysis on", now.strftime("%Y-%m-%d"), "at", now.strftime("%H:%M"))
Analysis on 2024-07-27 at 10:52
Analysis on 2024-07-27 at 10:52
Data Preparation
# read in and name speed csv
SpeedDF = pd.read_csv('data/TRAFFIC-Speed_Counts.csv')
SpeedDF.name = 'SpeedDF'
SpeedDF.head().transpose()
<positron-console-cell-8>:2: DtypeWarning: Columns (29) have mixed types. Specify dtype option on import or set low_memory=False.
| 0 | 1 | 2 | 3 | 4 | |
|---|---|---|---|---|---|
| X | -13666261.3309 | -13666261.3309 | -13663930.6133 | -13663930.6133 | -13663904.8261 |
| Y | 5722466.9793 | 5722466.9793 | 5711463.6992 | 5711463.6992 | 5711466.2873 |
| OBJECTID | 1 | 2 | 3 | 4 | 5 |
| CountID | 10010422.SP2 | 10010422.SP2 | 10010430.sp2 | 10010430.sp2 | 10010421.SP1 |
| ChannelID | 505638 | 505639 | 505648 | 505649 | 505642 |
| LocationDesc | N LOMBARD ST E of SIMMONS RD | N LOMBARD ST E of SIMMONS RD | NW 61ST AVE S of FRONT AVE | NW 61ST AVE S of FRONT AVE | NW FRONT AVE E of 61ST AVE |
| Bound | E | W | N | S | N |
| StartDate | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 |
| StartDay | MON | MON | MON | MON | MON |
| StartTime | 12:00:00 | 12:00:00 | 13:00:00 | 13:00:00 | 13:00:00 |
| EndDate | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/06 00:00:00+00 |
| EndDay | TUE | TUE | TUE | TUE | WED |
| EndTime | 23:00:00 | 23:00:00 | 23:00:00 | 23:00:00 | 14:00:00 |
| ADTVolume | 3048 | 3405 | 847 | 852 | 1524 |
| Spd50th | 39 | 39 | 20 | 19 | 33 |
| Spd70th | 43 | 44 | 23 | 22 | 37 |
| Spd85th | 46 | 48 | 26 | 25 | 42 |
| Spd90th | 47 | 49 | 27 | 26 | 44 |
| PostedSpeed | 45 | 45 | 25 | 25 | 40 |
| PctOverPosted | 17.9 | 25.7 | 17.7 | 14.1 | 20.6 |
| PctOverPosted10 | 0.6 | 1.5 | 0.2 | 0.2 | 2.2 |
| ExceptType | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday |
| NumChannels | 2 | 2 | 2 | 2 | 1 |
| ChannelNum | 1 | 2 | 1 | 2 | 1 |
| NumSlots | 13 | 13 | 13 | 13 | 13 |
| Conditions | NaN | NaN | NaN | NaN | NaN |
| Comment | 15925 | 15925 | NaN | NaN | NaN |
| Duration | 36 | 36 | 35 | 35 | 50 |
| IntervalLen | 60 | 60 | 60 | 60 | 60 |
| DeviceRef | 0022 | 0022 | 0030 | 0030 | 0021 |
| LocationID | LEG11527 | LEG11527 | LEG36313 | LEG36313 | LEG37236 |
| LocationClass | NODELEG | NODELEG | NODELEG | NODELEG | NODELEG |
| CountLocDesc | N LOMBARD ST E/N SIMMONS RD | N LOMBARD ST E/N SIMMONS RD | NW 61ST AVE W/NW FRONT AVE | NW 61ST AVE W/NW FRONT AVE | NW FRONT AVE S/NW 61ST AVE |
| CountType | SPEED | SPEED | SPEED | SPEED | SPEED |
# read in and name class csv
ClassDF = pd.read_csv('data/TRAFFIC-Class_Counts.csv')
ClassDF.name = 'ClassDF'
ClassDF.head().transpose()
| 0 | 1 | 2 | 3 | 4 | |
|---|---|---|---|---|---|
| X | -13666261.3309 | -13666261.3309 | -13663904.8261 | -13663904.8261 | -13663933.6073 |
| Y | 5722466.9793 | 5722466.9793 | 5711466.2873 | 5711466.2873 | 5711498.9549 |
| OBJECTID | 1 | 2 | 3 | 4 | 5 |
| CountID | 10010422.CL2 | 10010422.CL2 | 10010421.CL1 | 10010432.CL1 | 10011227.CL2 |
| ChannelID | 500769 | 500770 | 500773 | 500776 | 500781 |
| LocationDesc | N LOMBARD ST E of SIMMONS RD | N LOMBARD ST E of SIMMONS RD | NW FRONT AVE E of 61ST AVE | NW FRONT AVE E of 61ST AVE | NW FRONT AVE N of 61ST AVE |
| Bound | E | W | N | S | N |
| StartDate | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/12 00:00:00+00 |
| StartDay | MON | MON | MON | MON | TUE |
| StartTime | 12:00:00 | 12:00:00 | 13:00:00 | 13:00:00 | 15:00:00 |
| EndDate | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/06 00:00:00+00 | 2010/01/06 00:00:00+00 | 2010/01/14 00:00:00+00 |
| EndDay | TUE | TUE | WED | WED | THU |
| EndTime | 23:00:00 | 23:00:00 | 14:00:00 | 13:00:00 | 07:00:00 |
| ADTVolume | 3049 | 3409 | 1523 | 1450 | 640 |
| PctCars | 63.5 | 65.6 | 65.3 | 63.3 | 92.1 |
| PctTrucks | 36.5 | 34.4 | 34.7 | 36.7 | 7.9 |
| TwoAxleCF | 0.749 | 0.773 | 0.857 | 0.781 | 0.972 |
| ExceptType | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday |
| NumChannels | 2 | 2 | 1 | 1 | 2 |
| ChannelNum | 1 | 2 | 1 | 1 | 1 |
| NumCategories | 14 | 14 | 14 | 14 | 14 |
| Conditions | NaN | NaN | NaN | NaN | NaN |
| Comment | 15925 | 15925 | NaN | NaN | NaN |
| Duration | 36 | 36 | 50 | 49 | 41 |
| IntervalLen | 60 | 60 | 60 | 60 | 60 |
| DeviceRef | 0022 | 0022 | 0021 | 0032 | 0027 |
| LocationID | LEG11527 | LEG11527 | LEG37236 | LEG37236 | LEG37233 |
| LocationClass | NODELEG | NODELEG | NODELEG | NODELEG | NODELEG |
| CountLocDesc | N LOMBARD ST E/N SIMMONS RD | N LOMBARD ST E/N SIMMONS RD | NW FRONT AVE S/NW 61ST AVE | NW FRONT AVE S/NW 61ST AVE | NW FRONT AVE N/NW 61ST AVE |
| CountType | CLASS | CLASS | CLASS | CLASS | CLASS |
# read in and name volume csv
VolumeDF = pd.read_csv('data/TRAFFIC-Volume_Counts.csv')
VolumeDF.name = 'VolumeDF'
VolumeDF.head().transpose()
<positron-console-cell-10>:2: DtypeWarning: Columns (29) have mixed types. Specify dtype option on import or set low_memory=False.
| 0 | 1 | 2 | 3 | 4 | |
|---|---|---|---|---|---|
| X | -13666261.3309 | -13666261.3309 | -13663930.6133 | -13663930.6133 | -13663904.8261 |
| Y | 5722466.9793 | 5722466.9793 | 5711463.6992 | 5711463.6992 | 5711466.2873 |
| OBJECTID | 1 | 2 | 3 | 4 | 5 |
| CountID | 10010422.VL2 | 10010422.VL2 | 10010430.vl2 | 10010430.vl2 | 10010421.VL1 |
| ChannelID | 506851 | 506852 | 506872 | 506873 | 506855 |
| LocationDesc | N LOMBARD ST E of SIMMONS RD | N LOMBARD ST E of SIMMONS RD | NW 61ST AVE S of FRONT AVE | NW 61ST AVE S of FRONT AVE | NW FRONT AVE E of 61ST AVE |
| Bound | E | W | N | S | N |
| StartDate | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 |
| StartDay | MON | MON | MON | MON | MON |
| StartTime | 11:15:00 | 11:15:00 | 12:30:00 | 12:30:00 | 13:00:00 |
| EndDate | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/06 00:00:00+00 |
| EndDay | TUE | TUE | TUE | TUE | WED |
| EndTime | 23:45:00 | 23:45:00 | 23:45:00 | 23:45:00 | 15:15:00 |
| ADTVolume | 3033 | 3376 | 839 | 852 | 1491 |
| AMVolume | 1227 | 1992 | 432 | 512 | 632 |
| AMPkHrVol | 217 | 343 | 109 | 107 | 149 |
| AMPkHrTime | 2010/01/04 07:30:00+00 | 2010/01/04 06:15:00+00 | 2010/01/04 10:30:00+00 | 2010/01/04 09:30:00+00 | 2010/01/04 06:45:00+00 |
| AMPkHrFactor | 0.798 | 0.78 | 0.619 | 0.622 | 0.532 |
| PMVolume | 1806 | 1384 | 407 | 340 | 859 |
| PMPkHrVol | 333 | 253 | 77 | 79 | 134 |
| PMPkHrTime | 2010/01/04 15:15:00+00 | 2010/01/04 14:15:00+00 | 2010/01/04 12:15:00+00 | 2010/01/04 12:30:00+00 | 2010/01/04 18:30:00+00 |
| PMPkHrFactor | 0.771 | 0.917 | 0.962 | 0.859 | 0.435 |
| ExceptType | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday |
| NumChannels | 2 | 2 | 2 | 2 | 1 |
| ChannelNum | 1 | 2 | 1 | 2 | 1 |
| Conditions | NaN | NaN | NaN | NaN | NaN |
| Comment | 15925 | 15925 | NaN | NaN | NaN |
| Duration | 147 | 147 | 142 | 142 | 202 |
| IntervalLen | 15 | 15 | 15 | 15 | 15 |
| DeviceRef | 0022 | 0022 | 0030 | 0030 | 0021 |
| LocationID | LEG11527 | LEG11527 | LEG36313 | LEG36313 | LEG37236 |
| LocationClass | NODELEG | NODELEG | NODELEG | NODELEG | NODELEG |
| CountLocDesc | N LOMBARD ST E/N SIMMONS RD | N LOMBARD ST E/N SIMMONS RD | NW 61ST AVE W/NW FRONT AVE | NW 61ST AVE W/NW FRONT AVE | NW FRONT AVE S/NW 61ST AVE |
| CountType | VOLUME | VOLUME | VOLUME | VOLUME | VOLUME |
# establish dataframe iterable
DFs = [VolumeDF, ClassDF, SpeedDF]
# drop columns known to not be needed
for i in DFs:
i.drop(columns=['StartTime', 'EndTime', 'ChannelNum', 'NumChannels',
'Comment', 'LocationClass', 'Conditions', 'DeviceRef'], inplace=True)
i.info()
print('\n')
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 21056 entries, 0 to 21055
Data columns (total 26 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 X 21056 non-null float64
1 Y 21056 non-null float64
2 OBJECTID 21056 non-null int64
3 CountID 21056 non-null object
4 ChannelID 21056 non-null int64
5 LocationDesc 21056 non-null object
6 Bound 21056 non-null object
7 StartDate 21056 non-null object
8 StartDay 21056 non-null object
9 EndDate 21056 non-null object
10 EndDay 21056 non-null object
11 ADTVolume 21056 non-null int64
12 AMVolume 21056 non-null int64
13 AMPkHrVol 21056 non-null int64
14 AMPkHrTime 21056 non-null object
15 AMPkHrFactor 21056 non-null float64
16 PMVolume 21056 non-null int64
17 PMPkHrVol 21056 non-null int64
18 PMPkHrTime 21056 non-null object
19 PMPkHrFactor 21056 non-null float64
20 ExceptType 21056 non-null object
21 Duration 21056 non-null int64
22 IntervalLen 21056 non-null int64
23 LocationID 21056 non-null object
24 CountLocDesc 21056 non-null object
25 CountType 21056 non-null object
dtypes: float64(4), int64(9), object(13)
memory usage: 4.2+ MB
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 7849 entries, 0 to 7848
Data columns (total 22 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 X 7849 non-null float64
1 Y 7849 non-null float64
2 OBJECTID 7849 non-null int64
3 CountID 7849 non-null object
4 ChannelID 7849 non-null int64
5 LocationDesc 7849 non-null object
6 Bound 7844 non-null object
7 StartDate 7849 non-null object
8 StartDay 7849 non-null object
9 EndDate 7849 non-null object
10 EndDay 7849 non-null object
11 ADTVolume 7849 non-null int64
12 PctCars 7849 non-null float64
13 PctTrucks 7849 non-null float64
14 TwoAxleCF 7849 non-null float64
15 ExceptType 7849 non-null object
16 NumCategories 7849 non-null int64
17 Duration 7849 non-null int64
18 IntervalLen 7849 non-null int64
19 LocationID 7849 non-null object
20 CountLocDesc 7849 non-null object
21 CountType 7849 non-null object
dtypes: float64(5), int64(6), object(11)
memory usage: 1.3+ MB
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 17016 entries, 0 to 17015
Data columns (total 26 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 X 17016 non-null float64
1 Y 17016 non-null float64
2 OBJECTID 17016 non-null int64
3 CountID 17016 non-null object
4 ChannelID 17016 non-null int64
5 LocationDesc 17016 non-null object
6 Bound 17011 non-null object
7 StartDate 17016 non-null object
8 StartDay 17016 non-null object
9 EndDate 17016 non-null object
10 EndDay 17016 non-null object
11 ADTVolume 17016 non-null int64
12 Spd50th 17016 non-null int64
13 Spd70th 17016 non-null int64
14 Spd85th 17016 non-null int64
15 Spd90th 17016 non-null int64
16 PostedSpeed 17016 non-null int64
17 PctOverPosted 17016 non-null float64
18 PctOverPosted10 17016 non-null float64
19 ExceptType 17016 non-null object
20 NumSlots 17016 non-null int64
21 Duration 17016 non-null int64
22 IntervalLen 17016 non-null int64
23 LocationID 17016 non-null object
24 CountLocDesc 17016 non-null object
25 CountType 17016 non-null object
dtypes: float64(4), int64(11), object(11)
memory usage: 3.4+ MB
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 21056 entries, 0 to 21055
Data columns (total 26 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 X 21056 non-null float64
1 Y 21056 non-null float64
2 OBJECTID 21056 non-null int64
3 CountID 21056 non-null object
4 ChannelID 21056 non-null int64
5 LocationDesc 21056 non-null object
6 Bound 21056 non-null object
7 StartDate 21056 non-null object
8 StartDay 21056 non-null object
9 EndDate 21056 non-null object
10 EndDay 21056 non-null object
11 ADTVolume 21056 non-null int64
12 AMVolume 21056 non-null int64
13 AMPkHrVol 21056 non-null int64
14 AMPkHrTime 21056 non-null object
15 AMPkHrFactor 21056 non-null float64
16 PMVolume 21056 non-null int64
17 PMPkHrVol 21056 non-null int64
18 PMPkHrTime 21056 non-null object
19 PMPkHrFactor 21056 non-null float64
20 ExceptType 21056 non-null object
21 Duration 21056 non-null int64
22 IntervalLen 21056 non-null int64
23 LocationID 21056 non-null object
24 CountLocDesc 21056 non-null object
25 CountType 21056 non-null object
dtypes: float64(4), int64(9), object(13)
memory usage: 4.2+ MB
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 7849 entries, 0 to 7848
Data columns (total 22 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 X 7849 non-null float64
1 Y 7849 non-null float64
2 OBJECTID 7849 non-null int64
3 CountID 7849 non-null object
4 ChannelID 7849 non-null int64
5 LocationDesc 7849 non-null object
6 Bound 7844 non-null object
7 StartDate 7849 non-null object
8 StartDay 7849 non-null object
9 EndDate 7849 non-null object
10 EndDay 7849 non-null object
11 ADTVolume 7849 non-null int64
12 PctCars 7849 non-null float64
13 PctTrucks 7849 non-null float64
14 TwoAxleCF 7849 non-null float64
15 ExceptType 7849 non-null object
16 NumCategories 7849 non-null int64
17 Duration 7849 non-null int64
18 IntervalLen 7849 non-null int64
19 LocationID 7849 non-null object
20 CountLocDesc 7849 non-null object
21 CountType 7849 non-null object
dtypes: float64(5), int64(6), object(11)
memory usage: 1.3+ MB
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 17016 entries, 0 to 17015
Data columns (total 26 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 X 17016 non-null float64
1 Y 17016 non-null float64
2 OBJECTID 17016 non-null int64
3 CountID 17016 non-null object
4 ChannelID 17016 non-null int64
5 LocationDesc 17016 non-null object
6 Bound 17011 non-null object
7 StartDate 17016 non-null object
8 StartDay 17016 non-null object
9 EndDate 17016 non-null object
10 EndDay 17016 non-null object
11 ADTVolume 17016 non-null int64
12 Spd50th 17016 non-null int64
13 Spd70th 17016 non-null int64
14 Spd85th 17016 non-null int64
15 Spd90th 17016 non-null int64
16 PostedSpeed 17016 non-null int64
17 PctOverPosted 17016 non-null float64
18 PctOverPosted10 17016 non-null float64
19 ExceptType 17016 non-null object
20 NumSlots 17016 non-null int64
21 Duration 17016 non-null int64
22 IntervalLen 17016 non-null int64
23 LocationID 17016 non-null object
24 CountLocDesc 17016 non-null object
25 CountType 17016 non-null object
dtypes: float64(4), int64(11), object(11)
memory usage: 3.4+ MB
Here, the DataFrame in the list 'DFs' and generates value counts for the 'Bound', 'StartDay', and 'EndDay' columns, providing insights into the distribution of these variables.
# review values in the bound column
for i in DFs:
print(i['Bound'].value_counts())
print(i['StartDay'].value_counts())
print(i['EndDay'].value_counts(),'\n')
Bound
E 5703
W 5691
N 4819
S 4735
D 19
s 19
n 18
e 16
w 16
E-S 7
L 4
T 2
/ 2
SE 1
NW 1
B 1
C 1
M 1
Name: count, dtype: int64
StartDay
MON 5728
TUE 5470
WED 4878
THU 3556
SAT 664
SUN 554
FRI 206
Name: count, dtype: int64
EndDay
FRI 10404
THU 4298
WED 3458
TUE 1499
SUN 638
SAT 590
MON 169
Name: count, dtype: int64
Bound
E 2123
W 2084
N 1808
S 1779
NB LL 8
EB 5
NB RL 4
BND 4
S RL 4
30 2
EW 2
S.BND 2
SB 2
WB 2
WBND 2
.W 2
NS 1
NB 1
s 1
n 1
20 1
35 1
NBND 1
EBND 1
/S 1
e 1
B 1
Name: count, dtype: int64
StartDay
MON 2325
TUE 2229
WED 1906
THU 1180
SAT 106
SUN 85
FRI 18
Name: count, dtype: int64
EndDay
FRI 4082
THU 1777
WED 1314
TUE 454
SUN 100
SAT 98
MON 24
Name: count, dtype: int64
Bound
E 4489
W 4454
N 4018
S 4002
BND 11
EB 6
.W 3
e 3
w 2
EW 2
SB 2
B 2
25 2
NS 2
n 1
s 1
NB 1
NBND 1
EBND 1
30 1
WBND 1
/S 1
NB LL 1
WB 1
SE 1
NW 1
S.BND 1
Name: count, dtype: int64
StartDay
MON 4722
TUE 4644
WED 4078
THU 2878
SAT 365
SUN 261
FRI 68
Name: count, dtype: int64
EndDay
FRI 8656
THU 3612
WED 2873
TUE 1172
SUN 337
SAT 308
MON 58
Name: count, dtype: int64
Bound
E 5703
W 5691
N 4819
S 4735
D 19
s 19
n 18
e 16
w 16
E-S 7
L 4
T 2
/ 2
SE 1
NW 1
B 1
C 1
M 1
Name: count, dtype: int64
StartDay
MON 5728
TUE 5470
WED 4878
THU 3556
SAT 664
SUN 554
FRI 206
Name: count, dtype: int64
EndDay
FRI 10404
THU 4298
WED 3458
TUE 1499
SUN 638
SAT 590
MON 169
Name: count, dtype: int64
Bound
E 2123
W 2084
N 1808
S 1779
NB LL 8
EB 5
NB RL 4
BND 4
S RL 4
30 2
EW 2
S.BND 2
SB 2
WB 2
WBND 2
.W 2
NS 1
NB 1
s 1
n 1
20 1
35 1
NBND 1
EBND 1
/S 1
e 1
B 1
Name: count, dtype: int64
StartDay
MON 2325
TUE 2229
WED 1906
THU 1180
SAT 106
SUN 85
FRI 18
Name: count, dtype: int64
EndDay
FRI 4082
THU 1777
WED 1314
TUE 454
SUN 100
SAT 98
MON 24
Name: count, dtype: int64
Bound
E 4489
W 4454
N 4018
S 4002
BND 11
EB 6
.W 3
e 3
w 2
EW 2
SB 2
B 2
25 2
NS 2
n 1
s 1
NB 1
NBND 1
EBND 1
30 1
WBND 1
/S 1
NB LL 1
WB 1
SE 1
NW 1
S.BND 1
Name: count, dtype: int64
StartDay
MON 4722
TUE 4644
WED 4078
THU 2878
SAT 365
SUN 261
FRI 68
Name: count, dtype: int64
EndDay
FRI 8656
THU 3612
WED 2873
TUE 1172
SUN 337
SAT 308
MON 58
Name: count, dtype: int64
# update bound values for uniformity
for i in DFs:
i['Bound'] = i['Bound'].str.upper()
i['Bound'] = i['Bound'].str.replace('E-S', 'SE', regex=False)
i['Bound'] = i['Bound'].str.replace('EB.*', 'E', regex=True)
i['Bound'] = i['Bound'].str.replace('\?.WB.*', 'W', regex=True)
i['Bound'] = i['Bound'].str.replace('(NB.*)|(BND)', 'N', regex=True)
i['Bound'] = i['Bound'].str.replace('\?/S?/s?\.B.*', 'S', regex=True)
# establish df to input duplicate ids
duplicateIDs = pd.DataFrame()
# iterate through dfs to create ids & check for duplicates
for i in DFs:
i['ID'] = i['CountID'].str.split('.', n=1, expand=True)[0]+'_'+i['Bound']+'_' # generate IDs
i.insert(0, 'ID', i.pop('ID')) # move IDs to first columns
duplicateIDs = pd.concat([duplicateIDs,i[i['ID'].duplicated()]]) # add duplicated ID in single df to duplicateIDs
i.drop(columns=['CountID', 'Bound'], inplace=True)
print(i.name,':')
print(' ',len(i.index),'rows')
print(' ',i['ID'].nunique(),'unique IDs\n')
<positron-console-cell-13>:6: SyntaxWarning: invalid escape sequence '\?'
<positron-console-cell-13>:8: SyntaxWarning: invalid escape sequence '\?'
VolumeDF :
21056 rows
21040 unique IDs
ClassDF :
7849 rows
7839 unique IDs
VolumeDF :
21056 rows
21040 unique IDs
ClassDF :
7849 rows
7839 unique IDs
SpeedDF :
17016 rows
17005 unique IDs
SpeedDF :
17016 rows
17005 unique IDs
# check size of duplicate ids
duplicateIDs.shape
(35, 39)
# drop duplicate id rows from each df (if low impact)
for i in DFs:
i.drop(i[i['ID'].duplicated()].index, axis=0, inplace=True)
# list column names used for merge
connections = ['ID', 'StartDate', 'EndDate']
# set name suffixes for columns
suffixes = ['_Volume', '_Class', '_Speed'] # same order as DFs variable
# establish list of repeated column names
repeats = list(set(SpeedDF.columns) & set(VolumeDF.columns) & set(ClassDF.columns))
repeats = [i for i in repeats if i not in connections]
# iterate through dfs & repeated columns to add suffixes
y = 0
for i in DFs:
for x in repeats:
i.rename(columns={x: x + suffixes[y]}, inplace=True)
i.info()
y += 1
<class 'pandas.core.frame.DataFrame'>
Index: 21040 entries, 0 to 21055
Data columns (total 25 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 21040 non-null object
1 X_Volume 21040 non-null float64
2 Y_Volume 21040 non-null float64
3 OBJECTID_Volume 21040 non-null int64
4 ChannelID_Volume 21040 non-null int64
5 LocationDesc_Volume 21040 non-null object
6 StartDate 21040 non-null object
7 StartDay_Volume 21040 non-null object
8 EndDate 21040 non-null object
9 EndDay_Volume 21040 non-null object
10 ADTVolume_Volume 21040 non-null int64
11 AMVolume 21040 non-null int64
12 AMPkHrVol 21040 non-null int64
13 AMPkHrTime 21040 non-null object
14 AMPkHrFactor 21040 non-null float64
15 PMVolume 21040 non-null int64
16 PMPkHrVol 21040 non-null int64
17 PMPkHrTime 21040 non-null object
18 PMPkHrFactor 21040 non-null float64
19 ExceptType_Volume 21040 non-null object
20 Duration_Volume 21040 non-null int64
21 IntervalLen_Volume 21040 non-null int64
22 LocationID_Volume 21040 non-null object
23 CountLocDesc_Volume 21040 non-null object
24 CountType_Volume 21040 non-null object
dtypes: float64(4), int64(9), object(12)
memory usage: 4.2+ MB
<class 'pandas.core.frame.DataFrame'>
Index: 7840 entries, 0 to 7848
Data columns (total 21 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 7839 non-null object
1 X_Class 7840 non-null float64
2 Y_Class 7840 non-null float64
3 OBJECTID_Class 7840 non-null int64
4 ChannelID_Class 7840 non-null int64
5 LocationDesc_Class 7840 non-null object
6 StartDate 7840 non-null object
7 StartDay_Class 7840 non-null object
8 EndDate 7840 non-null object
9 EndDay_Class 7840 non-null object
10 ADTVolume_Class 7840 non-null int64
11 PctCars 7840 non-null float64
12 PctTrucks 7840 non-null float64
13 TwoAxleCF 7840 non-null float64
14 ExceptType_Class 7840 non-null object
15 NumCategories 7840 non-null int64
16 Duration_Class 7840 non-null int64
17 IntervalLen_Class 7840 non-null int64
18 LocationID_Class 7840 non-null object
19 CountLocDesc_Class 7840 non-null object
20 CountType_Class 7840 non-null object
dtypes: float64(5), int64(6), object(10)
memory usage: 1.3+ MB
<class 'pandas.core.frame.DataFrame'>
Index: 17006 entries, 0 to 17015
Data columns (total 25 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 17005 non-null object
1 X_Speed 17006 non-null float64
2 Y_Speed 17006 non-null float64
3 OBJECTID_Speed 17006 non-null int64
4 ChannelID_Speed 17006 non-null int64
5 LocationDesc_Speed 17006 non-null object
6 StartDate 17006 non-null object
7 StartDay_Speed 17006 non-null object
8 EndDate 17006 non-null object
9 EndDay_Speed 17006 non-null object
10 ADTVolume_Speed 17006 non-null int64
11 Spd50th 17006 non-null int64
12 Spd70th 17006 non-null int64
13 Spd85th 17006 non-null int64
14 Spd90th 17006 non-null int64
15 PostedSpeed 17006 non-null int64
16 PctOverPosted 17006 non-null float64
17 PctOverPosted10 17006 non-null float64
18 ExceptType_Speed 17006 non-null object
19 NumSlots 17006 non-null int64
20 Duration_Speed 17006 non-null int64
21 IntervalLen_Speed 17006 non-null int64
22 LocationID_Speed 17006 non-null object
23 CountLocDesc_Speed 17006 non-null object
24 CountType_Speed 17006 non-null object
dtypes: float64(4), int64(11), object(10)
memory usage: 3.4+ MB
<class 'pandas.core.frame.DataFrame'>
Index: 21040 entries, 0 to 21055
Data columns (total 25 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 21040 non-null object
1 X_Volume 21040 non-null float64
2 Y_Volume 21040 non-null float64
3 OBJECTID_Volume 21040 non-null int64
4 ChannelID_Volume 21040 non-null int64
5 LocationDesc_Volume 21040 non-null object
6 StartDate 21040 non-null object
7 StartDay_Volume 21040 non-null object
8 EndDate 21040 non-null object
9 EndDay_Volume 21040 non-null object
10 ADTVolume_Volume 21040 non-null int64
11 AMVolume 21040 non-null int64
12 AMPkHrVol 21040 non-null int64
13 AMPkHrTime 21040 non-null object
14 AMPkHrFactor 21040 non-null float64
15 PMVolume 21040 non-null int64
16 PMPkHrVol 21040 non-null int64
17 PMPkHrTime 21040 non-null object
18 PMPkHrFactor 21040 non-null float64
19 ExceptType_Volume 21040 non-null object
20 Duration_Volume 21040 non-null int64
21 IntervalLen_Volume 21040 non-null int64
22 LocationID_Volume 21040 non-null object
23 CountLocDesc_Volume 21040 non-null object
24 CountType_Volume 21040 non-null object
dtypes: float64(4), int64(9), object(12)
memory usage: 4.2+ MB
<class 'pandas.core.frame.DataFrame'>
Index: 7840 entries, 0 to 7848
Data columns (total 21 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 7839 non-null object
1 X_Class 7840 non-null float64
2 Y_Class 7840 non-null float64
3 OBJECTID_Class 7840 non-null int64
4 ChannelID_Class 7840 non-null int64
5 LocationDesc_Class 7840 non-null object
6 StartDate 7840 non-null object
7 StartDay_Class 7840 non-null object
8 EndDate 7840 non-null object
9 EndDay_Class 7840 non-null object
10 ADTVolume_Class 7840 non-null int64
11 PctCars 7840 non-null float64
12 PctTrucks 7840 non-null float64
13 TwoAxleCF 7840 non-null float64
14 ExceptType_Class 7840 non-null object
15 NumCategories 7840 non-null int64
16 Duration_Class 7840 non-null int64
17 IntervalLen_Class 7840 non-null int64
18 LocationID_Class 7840 non-null object
19 CountLocDesc_Class 7840 non-null object
20 CountType_Class 7840 non-null object
dtypes: float64(5), int64(6), object(10)
memory usage: 1.3+ MB
<class 'pandas.core.frame.DataFrame'>
Index: 17006 entries, 0 to 17015
Data columns (total 25 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 17005 non-null object
1 X_Speed 17006 non-null float64
2 Y_Speed 17006 non-null float64
3 OBJECTID_Speed 17006 non-null int64
4 ChannelID_Speed 17006 non-null int64
5 LocationDesc_Speed 17006 non-null object
6 StartDate 17006 non-null object
7 StartDay_Speed 17006 non-null object
8 EndDate 17006 non-null object
9 EndDay_Speed 17006 non-null object
10 ADTVolume_Speed 17006 non-null int64
11 Spd50th 17006 non-null int64
12 Spd70th 17006 non-null int64
13 Spd85th 17006 non-null int64
14 Spd90th 17006 non-null int64
15 PostedSpeed 17006 non-null int64
16 PctOverPosted 17006 non-null float64
17 PctOverPosted10 17006 non-null float64
18 ExceptType_Speed 17006 non-null object
19 NumSlots 17006 non-null int64
20 Duration_Speed 17006 non-null int64
21 IntervalLen_Speed 17006 non-null int64
22 LocationID_Speed 17006 non-null object
23 CountLocDesc_Speed 17006 non-null object
24 CountType_Speed 17006 non-null object
dtypes: float64(4), int64(11), object(10)
memory usage: 3.4+ MB
# merge dfs into one big one, keeping all values
df = SpeedDF.merge(ClassDF, how='outer', on=connections).merge(VolumeDF, how='outer', on=connections)
# check how many duplicated ids there are in the big df
df[df['ID'].duplicated()].shape
(440, 65)
# compare the size of the whole df
df.shape
(22736, 65)
# drop duplicated id rows if it makes sense
df.drop(df[df['ID'].duplicated()].index, axis=0, inplace=True)
df[df['ID'].duplicated()] # verify
| ID | X_Speed | Y_Speed | OBJECTID_Speed | ChannelID_Speed | LocationDesc_Speed | StartDate | StartDay_Speed | EndDate | EndDay_Speed | ADTVolume_Speed | Spd50th | Spd70th | Spd85th | Spd90th | PostedSpeed | PctOverPosted | PctOverPosted10 | ExceptType_Speed | NumSlots | Duration_Speed | IntervalLen_Speed | LocationID_Speed | CountLocDesc_Speed | CountType_Speed | X_Class | Y_Class | OBJECTID_Class | ChannelID_Class | LocationDesc_Class | StartDay_Class | EndDay_Class | ADTVolume_Class | PctCars | PctTrucks | TwoAxleCF | ExceptType_Class | NumCategories | Duration_Class | IntervalLen_Class | LocationID_Class | CountLocDesc_Class | CountType_Class | X_Volume | Y_Volume | OBJECTID_Volume | ChannelID_Volume | LocationDesc_Volume | StartDay_Volume | EndDay_Volume | ADTVolume_Volume | AMVolume | AMPkHrVol | AMPkHrTime | AMPkHrFactor | PMVolume | PMPkHrVol | PMPkHrTime | PMPkHrFactor | ExceptType_Volume | Duration_Volume | IntervalLen_Volume | LocationID_Volume | CountLocDesc_Volume | CountType_Volume |
|---|
# check for null counts
df.isnull().sum()
ID 1
X_Speed 5486
Y_Speed 5486
OBJECTID_Speed 5486
ChannelID_Speed 5486
...
Duration_Volume 1511
IntervalLen_Volume 1511
LocationID_Volume 1511
CountLocDesc_Volume 1511
CountType_Volume 1511
Length: 65, dtype: int64
# fill na in for repeated columns using values from other dfs
for i in repeats:
df[i+'_Speed'] = df[i+'_Speed'].fillna(df[i+'_Volume'])
df[i+'_Volume'] = df[i+'_Volume'].fillna(df[i+'_Class'])
df[i+'_Class'] = df[i+'_Class'].fillna(df[i+'_Speed'])
df[i+'_Speed'] = df[i+'_Speed'].fillna(df[i+'_Volume'])
df[i+'_Volume'] = df[i+'_Volume'].fillna(df[i+'_Class'])
df[i+'_Class'] = df[i+'_Class'].fillna(df[i+'_Speed'])
# sort columns alphabetically
df = df.reindex(sorted(df.columns), axis=1)
df.insert(0, 'ID', df.pop('ID')) # move ID to first column
# initial condensed df
df.info()
<class 'pandas.core.frame.DataFrame'>
Index: 22296 entries, 0 to 22734
Data columns (total 65 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 22295 non-null object
1 ADTVolume_Class 22296 non-null float64
2 ADTVolume_Speed 22296 non-null float64
3 ADTVolume_Volume 22296 non-null float64
4 AMPkHrFactor 20785 non-null float64
5 AMPkHrTime 20785 non-null object
6 AMPkHrVol 20785 non-null float64
7 AMVolume 20785 non-null float64
8 ChannelID_Class 22296 non-null float64
9 ChannelID_Speed 22296 non-null float64
10 ChannelID_Volume 22296 non-null float64
11 CountLocDesc_Class 22296 non-null object
12 CountLocDesc_Speed 22296 non-null object
13 CountLocDesc_Volume 22296 non-null object
14 CountType_Class 22296 non-null object
15 CountType_Speed 22296 non-null object
16 CountType_Volume 22296 non-null object
17 Duration_Class 22296 non-null float64
18 Duration_Speed 22296 non-null float64
19 Duration_Volume 22296 non-null float64
20 EndDate 22296 non-null object
21 EndDay_Class 22296 non-null object
22 EndDay_Speed 22296 non-null object
23 EndDay_Volume 22296 non-null object
24 ExceptType_Class 22296 non-null object
25 ExceptType_Speed 22296 non-null object
26 ExceptType_Volume 22296 non-null object
27 IntervalLen_Class 22296 non-null float64
28 IntervalLen_Speed 22296 non-null float64
29 IntervalLen_Volume 22296 non-null float64
30 LocationDesc_Class 22296 non-null object
31 LocationDesc_Speed 22296 non-null object
32 LocationDesc_Volume 22296 non-null object
33 LocationID_Class 22296 non-null object
34 LocationID_Speed 22296 non-null object
35 LocationID_Volume 22296 non-null object
36 NumCategories 7747 non-null float64
37 NumSlots 16810 non-null float64
38 OBJECTID_Class 22296 non-null float64
39 OBJECTID_Speed 22296 non-null float64
40 OBJECTID_Volume 22296 non-null float64
41 PMPkHrFactor 20785 non-null float64
42 PMPkHrTime 20785 non-null object
43 PMPkHrVol 20785 non-null float64
44 PMVolume 20785 non-null float64
45 PctCars 7747 non-null float64
46 PctOverPosted 16810 non-null float64
47 PctOverPosted10 16810 non-null float64
48 PctTrucks 7747 non-null float64
49 PostedSpeed 16810 non-null float64
50 Spd50th 16810 non-null float64
51 Spd70th 16810 non-null float64
52 Spd85th 16810 non-null float64
53 Spd90th 16810 non-null float64
54 StartDate 22296 non-null object
55 StartDay_Class 22296 non-null object
56 StartDay_Speed 22296 non-null object
57 StartDay_Volume 22296 non-null object
58 TwoAxleCF 7747 non-null float64
59 X_Class 22296 non-null float64
60 X_Speed 22296 non-null float64
61 X_Volume 22296 non-null float64
62 Y_Class 22296 non-null float64
63 Y_Speed 22296 non-null float64
64 Y_Volume 22296 non-null float64
dtypes: float64(39), object(26)
memory usage: 11.2+ MB
<class 'pandas.core.frame.DataFrame'>
Index: 22296 entries, 0 to 22734
Data columns (total 65 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 22295 non-null object
1 ADTVolume_Class 22296 non-null float64
2 ADTVolume_Speed 22296 non-null float64
3 ADTVolume_Volume 22296 non-null float64
4 AMPkHrFactor 20785 non-null float64
5 AMPkHrTime 20785 non-null object
6 AMPkHrVol 20785 non-null float64
7 AMVolume 20785 non-null float64
8 ChannelID_Class 22296 non-null float64
9 ChannelID_Speed 22296 non-null float64
10 ChannelID_Volume 22296 non-null float64
11 CountLocDesc_Class 22296 non-null object
12 CountLocDesc_Speed 22296 non-null object
13 CountLocDesc_Volume 22296 non-null object
14 CountType_Class 22296 non-null object
15 CountType_Speed 22296 non-null object
16 CountType_Volume 22296 non-null object
17 Duration_Class 22296 non-null float64
18 Duration_Speed 22296 non-null float64
19 Duration_Volume 22296 non-null float64
20 EndDate 22296 non-null object
21 EndDay_Class 22296 non-null object
22 EndDay_Speed 22296 non-null object
23 EndDay_Volume 22296 non-null object
24 ExceptType_Class 22296 non-null object
25 ExceptType_Speed 22296 non-null object
26 ExceptType_Volume 22296 non-null object
27 IntervalLen_Class 22296 non-null float64
28 IntervalLen_Speed 22296 non-null float64
29 IntervalLen_Volume 22296 non-null float64
30 LocationDesc_Class 22296 non-null object
31 LocationDesc_Speed 22296 non-null object
32 LocationDesc_Volume 22296 non-null object
33 LocationID_Class 22296 non-null object
34 LocationID_Speed 22296 non-null object
35 LocationID_Volume 22296 non-null object
36 NumCategories 7747 non-null float64
37 NumSlots 16810 non-null float64
38 OBJECTID_Class 22296 non-null float64
39 OBJECTID_Speed 22296 non-null float64
40 OBJECTID_Volume 22296 non-null float64
41 PMPkHrFactor 20785 non-null float64
42 PMPkHrTime 20785 non-null object
43 PMPkHrVol 20785 non-null float64
44 PMVolume 20785 non-null float64
45 PctCars 7747 non-null float64
46 PctOverPosted 16810 non-null float64
47 PctOverPosted10 16810 non-null float64
48 PctTrucks 7747 non-null float64
49 PostedSpeed 16810 non-null float64
50 Spd50th 16810 non-null float64
51 Spd70th 16810 non-null float64
52 Spd85th 16810 non-null float64
53 Spd90th 16810 non-null float64
54 StartDate 22296 non-null object
55 StartDay_Class 22296 non-null object
56 StartDay_Speed 22296 non-null object
57 StartDay_Volume 22296 non-null object
58 TwoAxleCF 7747 non-null float64
59 X_Class 22296 non-null float64
60 X_Speed 22296 non-null float64
61 X_Volume 22296 non-null float64
62 Y_Class 22296 non-null float64
63 Y_Speed 22296 non-null float64
64 Y_Volume 22296 non-null float64
dtypes: float64(39), object(26)
memory usage: 11.2+ MB
# iterate to find columns that are perfectly identical
for i in repeats:
if df[i+'_Speed'].equals(df[i+'_Volume']) is True:
print(i,'Speed and Volume match')
if df[i+'_Class'].equals(df[i+'_Volume']) is True:
print(i,'Class and Volume match')
if df[i+'_Speed'].equals(df[i+'_Class']) is True:
print(i,'Speed and Class match')
EndDay Speed and Volume match
EndDay Class and Volume match
EndDay Speed and Class match
EndDay Speed and Volume match
EndDay Class and Volume match
EndDay Speed and Class match
# clear up the low-hanging fruit (columns that perfectly match)
df.drop(columns=['EndDay_Speed', 'EndDay_Class'], inplace=True)
df.rename(columns={'EndDay_Volume':'EndDay'}, inplace=True)
repeats.remove('EndDay')
# figure out how many rows have mismatched values in repeated columns
rep = {}
for i in repeats:
print(i,':')
speed_volume = df.iloc[np.where((df[i+'_Speed'] != df[i+'_Volume']))]
speed_class = df.iloc[np.where((df[i+'_Speed'] != df[i+'_Class']))]
class_volume = df.iloc[np.where((df[i+'_Class'] != df[i+'_Volume']))]
mask = pd.concat([speed_volume, speed_class, class_volume])
mask = mask.drop_duplicates()
rep[i] = {i+'_Speed': mask[i+'_Speed'],
i+'_Volume': mask[i+'_Volume'],
i+'_Class': mask[i+'_Class']}
print(' ',len(mask),'\n')
ADTVolume :
14130
CountLocDesc :
197
OBJECTID :
ADTVolume :
14130
CountLocDesc :
197
OBJECTID :
15968
Y :
55
X :
55
IntervalLen :
15530
StartDay :
96
ChannelID :
15968
Y :
55
X :
55
IntervalLen :
15530
StartDay :
96
ChannelID :
15974
ExceptType :
57
LocationID :
55
LocationDesc :
47
CountType :
15974
ExceptType :
57
LocationID :
55
LocationDesc :
47
CountType :
15974
Duration :
15591
15974
Duration :
15591
# select speed as the df of truth for repeated columns, drop others
for i in repeats:
df[i] = df[i+'_Speed']
df.drop(i+'_Speed', axis=1, inplace=True)
df.drop(i+'_Volume', axis=1, inplace=True)
df.drop(i+'_Class', axis=1, inplace=True)
df.info()
<class 'pandas.core.frame.DataFrame'>
Index: 22296 entries, 0 to 22734
Data columns (total 37 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 22295 non-null object
1 AMPkHrFactor 20785 non-null float64
2 AMPkHrTime 20785 non-null object
3 AMPkHrVol 20785 non-null float64
4 AMVolume 20785 non-null float64
5 EndDate 22296 non-null object
6 EndDay 22296 non-null object
7 NumCategories 7747 non-null float64
8 NumSlots 16810 non-null float64
9 PMPkHrFactor 20785 non-null float64
10 PMPkHrTime 20785 non-null object
11 PMPkHrVol 20785 non-null float64
12 PMVolume 20785 non-null float64
13 PctCars 7747 non-null float64
14 PctOverPosted 16810 non-null float64
15 PctOverPosted10 16810 non-null float64
16 PctTrucks 7747 non-null float64
17 PostedSpeed 16810 non-null float64
18 Spd50th 16810 non-null float64
19 Spd70th 16810 non-null float64
20 Spd85th 16810 non-null float64
21 Spd90th 16810 non-null float64
22 StartDate 22296 non-null object
23 TwoAxleCF 7747 non-null float64
24 ADTVolume 22296 non-null float64
25 CountLocDesc 22296 non-null object
26 OBJECTID 22296 non-null float64
27 Y 22296 non-null float64
28 X 22296 non-null float64
29 IntervalLen 22296 non-null float64
30 StartDay 22296 non-null object
31 ChannelID 22296 non-null float64
32 ExceptType 22296 non-null object
33 LocationID 22296 non-null object
34 LocationDesc 22296 non-null object
35 CountType 22296 non-null object
36 Duration 22296 non-null float64
dtypes: float64(25), object(12)
memory usage: 6.5+ MB
<class 'pandas.core.frame.DataFrame'>
Index: 22296 entries, 0 to 22734
Data columns (total 37 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 ID 22295 non-null object
1 AMPkHrFactor 20785 non-null float64
2 AMPkHrTime 20785 non-null object
3 AMPkHrVol 20785 non-null float64
4 AMVolume 20785 non-null float64
5 EndDate 22296 non-null object
6 EndDay 22296 non-null object
7 NumCategories 7747 non-null float64
8 NumSlots 16810 non-null float64
9 PMPkHrFactor 20785 non-null float64
10 PMPkHrTime 20785 non-null object
11 PMPkHrVol 20785 non-null float64
12 PMVolume 20785 non-null float64
13 PctCars 7747 non-null float64
14 PctOverPosted 16810 non-null float64
15 PctOverPosted10 16810 non-null float64
16 PctTrucks 7747 non-null float64
17 PostedSpeed 16810 non-null float64
18 Spd50th 16810 non-null float64
19 Spd70th 16810 non-null float64
20 Spd85th 16810 non-null float64
21 Spd90th 16810 non-null float64
22 StartDate 22296 non-null object
23 TwoAxleCF 7747 non-null float64
24 ADTVolume 22296 non-null float64
25 CountLocDesc 22296 non-null object
26 OBJECTID 22296 non-null float64
27 Y 22296 non-null float64
28 X 22296 non-null float64
29 IntervalLen 22296 non-null float64
30 StartDay 22296 non-null object
31 ChannelID 22296 non-null float64
32 ExceptType 22296 non-null object
33 LocationID 22296 non-null object
34 LocationDesc 22296 non-null object
35 CountType 22296 non-null object
36 Duration 22296 non-null float64
dtypes: float64(25), object(12)
memory usage: 6.5+ MB
# remove any other columns known to not be needed
df = df.drop(columns=['NumCategories'])
# identify where one pct exists but the other doens't
pct_missingcars = df[(df['PctTrucks'].notnull()) & (df['PctCars'].isnull())]
pct_missingtrucks = df[(df['PctCars'].notnull()) & (df['PctTrucks'].isnull())]
pct_missingall = df[(df['PctCars'].isnull()) & (df['PctTrucks'].isnull())]
# fill in missing pct
df.loc[pct_missingcars.index, 'PctCars'] = 100-df['PctTrucks']
df.loc[pct_missingtrucks.index, 'PctTrucks'] = 100-df['PctCars']
# check how many are missing both pcts
pct_missingall.shape
(14549, 36)
# review values in TwoAxleCF
df['TwoAxleCF'].describe()
count 7747.000000
mean 0.985774
std 0.033495
min 0.632000
25% 0.990000
50% 0.995000
75% 0.998000
max 1.125000
Name: TwoAxleCF, dtype: float64
# fill missing TwoAxleCF values with median
df['TwoAxleCF'] = df['TwoAxleCF'].fillna(df['TwoAxleCF'].median())
# count of missing values from each row
df.isnull().sum()
ID 1
AMPkHrFactor 1511
AMPkHrTime 1511
AMPkHrVol 1511
AMVolume 1511
EndDate 0
EndDay 0
NumSlots 5486
PMPkHrFactor 1511
PMPkHrTime 1511
PMPkHrVol 1511
PMVolume 1511
PctCars 14549
PctOverPosted 5486
PctOverPosted10 5486
PctTrucks 14549
PostedSpeed 5486
Spd50th 5486
Spd70th 5486
Spd85th 5486
Spd90th 5486
StartDate 0
TwoAxleCF 0
ADTVolume 0
CountLocDesc 0
OBJECTID 0
Y 0
X 0
IntervalLen 0
StartDay 0
ChannelID 0
ExceptType 0
LocationID 0
LocationDesc 0
CountType 0
Duration 0
dtype: int64
# remove all rows with na values, leaving a clean dataset
df = df.dropna()
df.shape
(7072, 36)
# final dataframe
df.head().transpose()
| 2 | 3 | 4 | 10 | 31 | |
|---|---|---|---|---|---|
| ID | 10010421_N_ | 10010422_E_ | 10010422_W_ | 10010432_S_ | 10011224_N_ |
| AMPkHrFactor | 0.532 | 0.798 | 0.78 | 0.726 | 0.885 |
| AMPkHrTime | 2010/01/04 06:45:00+00 | 2010/01/04 07:30:00+00 | 2010/01/04 06:15:00+00 | 2010/01/04 06:00:00+00 | 2010/01/12 08:00:00+00 |
| AMPkHrVol | 149.0 | 217.0 | 343.0 | 209.0 | 170.0 |
| AMVolume | 632.0 | 1227.0 | 1992.0 | 895.0 | 724.0 |
| EndDate | 2010/01/06 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/05 00:00:00+00 | 2010/01/06 00:00:00+00 | 2010/01/15 00:00:00+00 |
| EndDay | WED | TUE | TUE | WED | FRI |
| NumSlots | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
| PMPkHrFactor | 0.435 | 0.771 | 0.917 | 0.867 | 0.964 |
| PMPkHrTime | 2010/01/04 18:30:00+00 | 2010/01/04 15:15:00+00 | 2010/01/04 14:15:00+00 | 2010/01/04 12:00:00+00 | 2010/01/12 17:00:00+00 |
| PMPkHrVol | 134.0 | 333.0 | 253.0 | 104.0 | 189.0 |
| PMVolume | 859.0 | 1806.0 | 1384.0 | 528.0 | 1564.0 |
| PctCars | 65.3 | 63.5 | 65.6 | 63.3 | 98.0 |
| PctOverPosted | 20.6 | 17.9 | 25.7 | 22.1 | 21.1 |
| PctOverPosted10 | 2.2 | 0.6 | 1.5 | 2.5 | 0.1 |
| PctTrucks | 34.7 | 36.5 | 34.4 | 36.7 | 2.0 |
| PostedSpeed | 40.0 | 45.0 | 45.0 | 40.0 | 25.0 |
| Spd50th | 33.0 | 39.0 | 39.0 | 35.0 | 22.0 |
| Spd70th | 37.0 | 43.0 | 44.0 | 38.0 | 24.0 |
| Spd85th | 42.0 | 46.0 | 48.0 | 42.0 | 26.0 |
| Spd90th | 44.0 | 47.0 | 49.0 | 44.0 | 27.0 |
| StartDate | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/04 00:00:00+00 | 2010/01/12 00:00:00+00 |
| TwoAxleCF | 0.857 | 0.749 | 0.773 | 0.781 | 0.998 |
| ADTVolume | 1524.0 | 3048.0 | 3405.0 | 1465.0 | 2301.0 |
| CountLocDesc | NW FRONT AVE S/NW 61ST AVE | N LOMBARD ST E/N SIMMONS RD | N LOMBARD ST E/N SIMMONS RD | NW FRONT AVE S/NW 61ST AVE | SE 20TH AVE N/SE STEPHENS ST |
| OBJECTID | 5.0 | 1.0 | 2.0 | 6.0 | 22.0 |
| Y | 5711466.2873 | 5722466.9793 | 5722466.9793 | 5711466.2873 | 5702148.698 |
| X | -13663904.8261 | -13666261.3309 | -13666261.3309 | -13663904.8261 | -13652793.7282 |
| IntervalLen | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 |
| StartDay | MON | MON | MON | MON | TUE |
| ChannelID | 505642.0 | 505638.0 | 505639.0 | 505645.0 | 505676.0 |
| ExceptType | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday | Normal Weekday |
| LocationID | LEG37236 | LEG11527 | LEG11527 | LEG37236 | LEG43556 |
| LocationDesc | NW FRONT AVE E of 61ST AVE | N LOMBARD ST E of SIMMONS RD | N LOMBARD ST E of SIMMONS RD | NW FRONT AVE E of 61ST AVE | SE 20TH AVE N of STEPHENS ST |
| CountType | SPEED | SPEED | SPEED | SPEED | SPEED |
| Duration | 50.0 | 36.0 | 36.0 | 49.0 | 85.0 |
Verify impact of dropped rows
# suppress warnings for datetaime conversion
import warnings
warnings.filterwarnings("ignore",
message="Converting to PeriodArray/Index representation will drop timezone information.")
def extract_month_year(origin, df_name, column_name):
new_df = pd.DataFrame()
new_df['Month_Year'] = pd.to_datetime(origin[column_name]).dt.to_period('M')
# count occurrences of each unique month/year combo
count_df = new_df['Month_Year'].value_counts().reset_index()
count_df.columns = ['Month_Year', 'Count']
# sum the counts
sum_count = count_df['Count'].sum()
# calculate percentage of sum for each month/year combo
count_df['Percentage'] = (count_df['Count'] / sum_count) * 100
# rename column according to dataframe name
count_df.rename(columns={'Percentage': f'{df_name}_Percentage'}, inplace=True)
return count_df.set_index('Month_Year')[[f'{df_name}_Percentage']]
# apply function to each dataframe
df_percentages = extract_month_year(df, 'df', 'StartDate')
Speed_DF_percentages = extract_month_year(SpeedDF, 'SpeedDF', 'StartDate')
Class_DF_percentages = extract_month_year(ClassDF, 'ClassDF', 'StartDate')
Volume_DF_percentages = extract_month_year(VolumeDF, 'VolumeDF', 'StartDate')
# merge the percentage dataframes
freq_df = pd.merge(df_percentages, Speed_DF_percentages, on='Month_Year', how='outer')
freq_df = pd.merge(freq_df, Class_DF_percentages, on='Month_Year', how='outer')
freq_df = pd.merge(freq_df, Volume_DF_percentages, on='Month_Year', how='outer')
# sort the index
freq_df.sort_index(inplace=True)
# plot the results
ax = freq_df.plot(kind='line', figsize=(10, 6))
ax.lines[0].set_alpha(1)
for line in ax.lines[1:]:
line.set_alpha(0.2)
plt.title('Count Comparison Over Time')
plt.xlabel('Month/Year')
plt.ylabel('Percent of Total Counts for each Data Frame')
plt.grid(True)
plt.legend()
plt.show()
Data Exploration
# visualizing outliers
variables = ['PostedSpeed', 'PctOverPosted']
for variable in variables:
plt.figure(figsize=(4, 2))
sns.boxplot(x=df[variable])
plt.title(f"{variable} Boxplot with Outliers")
plt.show()
# dropping outliers using IQR
for variable in variables:
Q1 = df[variable].quantile(0.25)
Q3 = df[variable].quantile(0.75)
IQR = Q3 - Q1
lower_threshold = Q1 - 1.5 * IQR
upper_threshold = Q3 + 1.5 * IQR
# Identify and drop
outliers_index = (df[variable] < lower_threshold) | (df[variable] > upper_threshold)
df = df[~outliers_index]
# new df after dropping outliers
for variable in variables:
plt.figure(figsize=(4, 2))
sns.boxplot(x=df[variable])
plt.title(f"{variable} Boxplot, Outliers Removed")
plt.show()
Feature Engineering
Aggregated Statistics : statistics such as mean, median, maximum, or minimum speed for each vehicle type, location, and time interval. These statistics can provide insights into the typical speeding behavior in different scenarios.
# Variables for calculation
StatVariables = ['PctOverPosted', 'PctOverPosted10', 'ADTVolume']
# Means, Median, Min, and Max grouped by Start Day
StartDayStats_df = pd.DataFrame()
for variable in StatVariables:
stats_by_day = df.groupby(['StartDay'])[variable].agg(['mean', 'median', 'min', 'max']).reset_index()
stats_by_day.rename(columns={
'mean': f'{variable}_mean',
'median': f'{variable}_median',
'min': f'{variable}_min',
'max': f'{variable}_max'
}, inplace=True)
stats_by_day = stats_by_day.round(2)
StartDayStats_df = pd.concat([StartDayStats_df, stats_by_day], axis=1)
output_string = StartDayStats_df.to_string(index=False,)
print(output_string)
StartDay PctOverPosted_mean PctOverPosted_median PctOverPosted_min PctOverPosted_max StartDay PctOverPosted10_mean PctOverPosted10_median PctOverPosted10_min PctOverPosted10_max StartDay ADTVolume_mean ADTVolume_median ADTVolume_min ADTVolume_max
FRI 25.35 23.80 2.7 50.8 FRI 0.30 0.25 0.0 0.8 FRI 2115.17 1777.5 912.0 4795.0
MON 36.75 31.50 0.0 99.6 MON 3.41 0.80 0.0 86.6 MON 3484.60 2436.0 26.0 25705.0
SAT 37.87 37.75 0.2 90.2 SAT 2.92 0.95 0.0 23.1 SAT 1743.56 1199.5 46.0 6540.0
SUN 48.27 49.00 2.3 92.6 SUN 3.88 1.30 0.0 28.7 SUN 1965.43 1320.0 247.0 5777.0
THU 33.52 29.15 0.0 96.5 THU 2.47 0.50 0.0 51.0 THU 1929.78 748.5 19.0 22141.0
TUE 37.64 32.80 0.0 98.7 TUE 3.54 0.80 0.0 89.4 TUE 3007.47 1608.0 39.0 27058.0
WED 36.30 30.40 0.0 96.9 WED 3.58 0.60 0.0 67.6 WED 3006.57 1654.0 14.0 23236.0
StartDay PctOverPosted_mean PctOverPosted_median PctOverPosted_min PctOverPosted_max StartDay PctOverPosted10_mean PctOverPosted10_median PctOverPosted10_min PctOverPosted10_max StartDay ADTVolume_mean ADTVolume_median ADTVolume_min ADTVolume_max
FRI 25.35 23.80 2.7 50.8 FRI 0.30 0.25 0.0 0.8 FRI 2115.17 1777.5 912.0 4795.0
MON 36.75 31.50 0.0 99.6 MON 3.41 0.80 0.0 86.6 MON 3484.60 2436.0 26.0 25705.0
SAT 37.87 37.75 0.2 90.2 SAT 2.92 0.95 0.0 23.1 SAT 1743.56 1199.5 46.0 6540.0
SUN 48.27 49.00 2.3 92.6 SUN 3.88 1.30 0.0 28.7 SUN 1965.43 1320.0 247.0 5777.0
THU 33.52 29.15 0.0 96.5 THU 2.47 0.50 0.0 51.0 THU 1929.78 748.5 19.0 22141.0
TUE 37.64 32.80 0.0 98.7 TUE 3.54 0.80 0.0 89.4 TUE 3007.47 1608.0 39.0 27058.0
WED 36.30 30.40 0.0 96.9 WED 3.58 0.60 0.0 67.6 WED 3006.57 1654.0 14.0 23236.0
Speed Deviation from Speed Limit: difference between the observed speed and the posted speed limit for each location and time interval. This can help identify areas where speeding is more prevalent relative to the speed limit.
# Calculate differences between posted and percentile speeds
def calculate_differences(group):
group['Diff_Spd50th'] = group['Spd50th'] - group['PostedSpeed']
group['Diff_Spd70th'] = group['Spd70th'] - group['PostedSpeed']
group['Diff_Spd85th'] = group['Spd85th'] - group['PostedSpeed']
group['Diff_Spd90th'] = group['Spd90th'] - group['PostedSpeed']
return group
# Apply the function to each group based on the 'ID' column
# Using _extras for this so as not to add unwanted extra columns to the data
df_extras = df.groupby('ID').apply(calculate_differences).reset_index(drop=True)
# Optional display
#df_extras.head().transpose()
<positron-console-cell-40>:11: DeprecationWarning: DataFrameGroupBy.apply operated on the grouping columns. This behavior is deprecated, and in a future version of pandas the grouping columns will be excluded from the operation. Either pass `include_groups=False` to exclude the groupings or explicitly select the grouping columns after groupby to silence this warning.
# calculate the avg for each 'CountLocDesc'
average_diff_by_countlocdesc = df_extras.groupby('CountLocDesc').agg({
'Diff_Spd50th': 'mean',
'Diff_Spd70th': 'mean',
'Diff_Spd85th': 'mean',
'Diff_Spd90th': 'mean'
}).reset_index()
# Optional display
average_diff_by_countlocdesc = average_diff_by_countlocdesc.sort_values(by='Diff_Spd90th', ascending=False)
#average_diff_by_countlocdesc.head()
# Display the top 15 rows for locations with the greatest mean speed over posted
top_15_diff_Spd50th = df_extras.nlargest(15, 'Diff_Spd50th')
print(tabulate(top_15_diff_Spd50th[['CountLocDesc', 'PostedSpeed', 'Spd50th', 'Diff_Spd50th','PctOverPosted10']],
headers=['CountLocDesc', 'PostedSpeed', 'Spd50th', 'Diff_Spd50th','PctOverPosted10'],
tablefmt='outline', showindex=False))
+--------------------------------------------------------+---------------+-----------+----------------+-------------------+
| CountLocDesc | PostedSpeed | Spd50th | Diff_Spd50th | PctOverPosted10 |
+========================================================+===============+===========+================+===================+
| SE 112TH AVE S of SE OGDEN S | 20 | 37 | 17 | 89.4 |
| COLUMBIA WAY - COLUMBIA BLVD RAMP W of N COLUMBIA BLVD | 20 | 36 | 16 | 86.6 |
| I-84 EB EXTO NE 68TH AVE W of NE 68TH AVE | 25 | 39 | 14 | 78.3 |
| NE 148TH AVE S of NE SACRAMENTO ST | 30 | 43 | 13 | 67.6 |
| SW 45TH DR S of SW DOLPH CT | 25 | 37 | 12 | 63.9 |
| SE FLAVEL DR W of SE 60TH AVE | 20 | 31 | 11 | 61.3 |
| SE FLAVEL DR W of SE 60TH AVE | 20 | 31 | 11 | 57.6 |
| SE MARKET ST W of SE 104TH AVE | 20 | 31 | 11 | 59.2 |
| SW TERWILLIGER BLV N/SW CONDOR LN | 25 | 35 | 10 | 45.8 |
| SW 45TH DR N of SW ORCHID ST | 30 | 40 | 10 | 50.6 |
| SE MT SCOTT BLVD W of SE 108TH AVE | 35 | 45 | 10 | 51.9 |
| NE SHAVER ST W of NE 125TH PL | 20 | 30 | 10 | 48.9 |
| NE SHAVER ST W of NE 125TH PL | 20 | 30 | 10 | 51.9 |
| SE FLAVEL DR E of SE TENINO ST | 20 | 30 | 10 | 45.9 |
| SE FLAVEL DR E of SE TENINO ST | 20 | 30 | 10 | 46.6 |
+--------------------------------------------------------+---------------+-----------+----------------+-------------------+
+--------------------------------------------------------+---------------+-----------+----------------+-------------------+
| CountLocDesc | PostedSpeed | Spd50th | Diff_Spd50th | PctOverPosted10 |
+========================================================+===============+===========+================+===================+
| SE 112TH AVE S of SE OGDEN S | 20 | 37 | 17 | 89.4 |
| COLUMBIA WAY - COLUMBIA BLVD RAMP W of N COLUMBIA BLVD | 20 | 36 | 16 | 86.6 |
| I-84 EB EXTO NE 68TH AVE W of NE 68TH AVE | 25 | 39 | 14 | 78.3 |
| NE 148TH AVE S of NE SACRAMENTO ST | 30 | 43 | 13 | 67.6 |
| SW 45TH DR S of SW DOLPH CT | 25 | 37 | 12 | 63.9 |
| SE FLAVEL DR W of SE 60TH AVE | 20 | 31 | 11 | 61.3 |
| SE FLAVEL DR W of SE 60TH AVE | 20 | 31 | 11 | 57.6 |
| SE MARKET ST W of SE 104TH AVE | 20 | 31 | 11 | 59.2 |
| SW TERWILLIGER BLV N/SW CONDOR LN | 25 | 35 | 10 | 45.8 |
| SW 45TH DR N of SW ORCHID ST | 30 | 40 | 10 | 50.6 |
| SE MT SCOTT BLVD W of SE 108TH AVE | 35 | 45 | 10 | 51.9 |
| NE SHAVER ST W of NE 125TH PL | 20 | 30 | 10 | 48.9 |
| NE SHAVER ST W of NE 125TH PL | 20 | 30 | 10 | 51.9 |
| SE FLAVEL DR E of SE TENINO ST | 20 | 30 | 10 | 45.9 |
| SE FLAVEL DR E of SE TENINO ST | 20 | 30 | 10 | 46.6 |
+--------------------------------------------------------+---------------+-----------+----------------+-------------------+
# Optional - Display the top 15 rows for locations with the greatest speed for 90th percentile
# top_15_diff_Spd50th = df_extras.nlargest(15, 'Diff_Spd90th')
# print(tabulate(top_15_diff_Spd50th[['CountLocDesc', 'PostedSpeed', 'Spd90th', 'Diff_Spd90th','PctOverPosted10']],
# headers=['CountLocDesc', 'PostedSpeed', 'Spd90th', 'Diff_Spd90th','PctOverPosted10'],
# tablefmt='outline', showindex=False))
Historical Features: to capture trends and seasonality in speeding behaviour.
# Yearly average over time
# Convert StartDate to datetime
df['StartDate'] = pd.to_datetime(df['StartDate'])
# Extract the year from StartDate
df['Year'] = df['StartDate'].dt.year
# Calculate average PctOverPosted10 and PctOverPosted by grouping only by 'Year'
yearlyavg_pctover10 = df.groupby('Year')['PctOverPosted10'].mean()
yearlyavg_pctover = df.groupby('Year')['PctOverPosted'].mean()
# Plotting
plt.figure(figsize=(12, 8))
plt.plot(yearlyavg_pctover10.index, yearlyavg_pctover10.values, marker='o', linestyle='-', label='PctOverPosted10')
plt.plot(yearlyavg_pctover.index, yearlyavg_pctover.values, marker='o', linestyle='-', label='PctOverPosted')
plt.title('Yearly Average PctOverPosted10 and PctOverPosted Over Time')
plt.xlabel('Year')
plt.ylabel('Average Percentage')
plt.grid(True)
plt.legend()
plt.show()
# Monthly aggregation PctOverPosted
# Convert StartDate to datetime
df = df.copy()
df['StartDate'] = pd.to_datetime(df['StartDate'])
# Extract the year and month from StartDate
df['Year'] = df['StartDate'].dt.year
df['Month'] = df['StartDate'].dt.month
# Calculate average PctOverPosted
avg_pct_over_time = df.groupby(['Year', 'Month'])['PctOverPosted'].mean().unstack()
# Plotting
plt.figure(figsize=(12, 8))
for year in avg_pct_over_time.index:
plt.plot(range(1, 13), avg_pct_over_time.loc[year], marker='o', label=f'{year}')
plt.title('Average PctOverPosted Over Time')
plt.xlabel('Month')
plt.ylabel('Average PctOverPosted')
plt.grid(True)
plt.xticks(range(1, 13), labels=['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'])
plt.legend(title='Year', bbox_to_anchor=(1, 1), loc='upper left')
plt.show()
# Monthly aggregation PctOverPosted10
# Convert StartDate to datetime
df = df.copy()
df['StartDate'] = pd.to_datetime(df['StartDate'])
# Extract the year and month from StartDate
df['Year'] = df['StartDate'].dt.year
# Calculate average PctOverPosted10
yearly_avg_pct_over_time10 = df.groupby(['Year','Month'])['PctOverPosted10'].mean().unstack()
# Plotting
plt.figure(figsize=(12, 8))
for year in yearly_avg_pct_over_time10.index:
plt.plot(range(1, 13), yearly_avg_pct_over_time10.loc[year], marker='o', label=f'{year}')
plt.title('Yearly Average PctOverPosted10 Over Time')
plt.xlabel('Month')
plt.ylabel('Average PctOverPosted10')
plt.grid(True)
plt.xticks(range(1, 13), labels=['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'])
plt.legend(title='Year', bbox_to_anchor=(1., 1), loc='upper left')
plt.show()
Feature Selection
# create new column "Over10Speeders" where any PctOver10 > 0 is marked 1
df['10OverSpeeding'] = df['PctOverPosted10'].apply(lambda x: 1 if x > 0 else 0)
col = df.pop('10OverSpeeding')
df.insert(0, col.name, col)
# drop redundant column PctOverPosted10
df.drop(columns=['PctOverPosted10'], inplace=True)
# review correlations to target
df.corr(numeric_only = True)['10OverSpeeding'].sort_values().round(2)
PctCars -0.19
TwoAxleCF -0.16
Month -0.05
ChannelID -0.03
OBJECTID -0.03
Year -0.02
IntervalLen 0.01
NumSlots 0.01
Y 0.04
Duration 0.08
X 0.09
PctTrucks 0.19
PostedSpeed 0.27
AMVolume 0.29
AMPkHrVol 0.30
AMPkHrFactor 0.30
PMPkHrFactor 0.31
PMVolume 0.31
ADTVolume 0.31
PMPkHrVol 0.32
Spd90th 0.41
Spd85th 0.47
Spd70th 0.50
Spd50th 0.50
PctOverPosted 0.52
10OverSpeeding 1.00
Name: 10OverSpeeding, dtype: float64
# Correlation for ALL NUMERICAL
numeric_columns = df.select_dtypes(include=['float64', 'int64']).columns
correlation_matrix = df[numeric_columns].corr()
# Plotting a heatmap using seaborn
plt.figure(figsize=(16, 8))
sns.heatmap(correlation_matrix, annot=True, cmap='coolwarm', fmt=".2f", linewidths=.5)
plt.title('Correlation Matrix')
plt.show()
# create subset
df_subset = df[['10OverSpeeding', 'AMPkHrVol', 'AMVolume', 'PMPkHrVol', 'PMVolume',
'PctCars', 'PostedSpeed', 'X', 'ADTVolume', 'Y', 'StartDay', 'Month']]
# Print the updated dataframe information
df_subset.info()
print('\n')
df_subset['10OverSpeeding'].value_counts()
<class 'pandas.core.frame.DataFrame'>
Index: 7055 entries, 2 to 22589
Data columns (total 12 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 10OverSpeeding 7055 non-null int64
1 AMPkHrVol 7055 non-null float64
2 AMVolume 7055 non-null float64
3 PMPkHrVol 7055 non-null float64
4 PMVolume 7055 non-null float64
5 PctCars 7055 non-null float64
6 PostedSpeed 7055 non-null float64
7 X 7055 non-null float64
8 ADTVolume 7055 non-null float64
9 Y 7055 non-null float64
10 StartDay 7055 non-null object
11 Month 7055 non-null int32
dtypes: float64(9), int32(1), int64(1), object(1)
memory usage: 689.0+ KB
<class 'pandas.core.frame.DataFrame'>
Index: 7055 entries, 2 to 22589
Data columns (total 12 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 10OverSpeeding 7055 non-null int64
1 AMPkHrVol 7055 non-null float64
2 AMVolume 7055 non-null float64
3 PMPkHrVol 7055 non-null float64
4 PMVolume 7055 non-null float64
5 PctCars 7055 non-null float64
6 PostedSpeed 7055 non-null float64
7 X 7055 non-null float64
8 ADTVolume 7055 non-null float64
9 Y 7055 non-null float64
10 StartDay 7055 non-null object
11 Month 7055 non-null int32
dtypes: float64(9), int32(1), int64(1), object(1)
memory usage: 689.0+ KB
10OverSpeeding
1 5658
0 1397
Name: count, dtype: int64
# set initial predictors list
target = '10OverSpeeding'
predictors = ['AMPkHrVol', 'AMVolume', 'PMPkHrVol', 'PMVolume',
'PctCars', 'PostedSpeed', 'X', 'ADTVolume', 'Y', 'StartDay', 'Month']
# get dummies
df_subset = pd.get_dummies(df_subset, columns=df_subset.select_dtypes(include=['object', 'category']).columns, drop_first=True)
df_subset.info()
<class 'pandas.core.frame.DataFrame'>
Index: 7055 entries, 2 to 22589
Data columns (total 17 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 10OverSpeeding 7055 non-null int64
1 AMPkHrVol 7055 non-null float64
2 AMVolume 7055 non-null float64
3 PMPkHrVol 7055 non-null float64
4 PMVolume 7055 non-null float64
5 PctCars 7055 non-null float64
6 PostedSpeed 7055 non-null float64
7 X 7055 non-null float64
8 ADTVolume 7055 non-null float64
9 Y 7055 non-null float64
10 Month 7055 non-null int32
11 StartDay_MON 7055 non-null bool
12 StartDay_SAT 7055 non-null bool
13 StartDay_SUN 7055 non-null bool
14 StartDay_THU 7055 non-null bool
15 StartDay_TUE 7055 non-null bool
16 StartDay_WED 7055 non-null bool
dtypes: bool(6), float64(9), int32(1), int64(1)
memory usage: 675.2 KB
<class 'pandas.core.frame.DataFrame'>
Index: 7055 entries, 2 to 22589
Data columns (total 17 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 10OverSpeeding 7055 non-null int64
1 AMPkHrVol 7055 non-null float64
2 AMVolume 7055 non-null float64
3 PMPkHrVol 7055 non-null float64
4 PMVolume 7055 non-null float64
5 PctCars 7055 non-null float64
6 PostedSpeed 7055 non-null float64
7 X 7055 non-null float64
8 ADTVolume 7055 non-null float64
9 Y 7055 non-null float64
10 Month 7055 non-null int32
11 StartDay_MON 7055 non-null bool
12 StartDay_SAT 7055 non-null bool
13 StartDay_SUN 7055 non-null bool
14 StartDay_THU 7055 non-null bool
15 StartDay_TUE 7055 non-null bool
16 StartDay_WED 7055 non-null bool
dtypes: bool(6), float64(9), int32(1), int64(1)
memory usage: 675.2 KB
# automated multivariate feature selection
X = df_subset.drop(columns=[target])
y = df_subset[target]
estimator = DecisionTreeClassifier()
selector = RFE(estimator, n_features_to_select=10, step=1).fit(X,y)
rnk = pd.DataFrame()
rnk['Feature'] = X.columns
rnk['Rank']= selector.ranking_
rnk.sort_values('Rank')
| Feature | Rank | |
|---|---|---|
| 0 | AMPkHrVol | 1 |
| 1 | AMVolume | 1 |
| 2 | PMPkHrVol | 1 |
| 3 | PMVolume | 1 |
| 4 | PctCars | 1 |
| 5 | PostedSpeed | 1 |
| 6 | X | 1 |
| 7 | ADTVolume | 1 |
| 8 | Y | 1 |
| 9 | Month | 1 |
| 15 | StartDay_WED | 2 |
| 10 | StartDay_MON | 3 |
| 14 | StartDay_TUE | 4 |
| 13 | StartDay_THU | 5 |
| 12 | StartDay_SUN | 6 |
| 11 | StartDay_SAT | 7 |
# View the selected features
selected_features = rnk.sort_values('Rank').head(10)['Feature'].tolist()
# Display
print("Top 10 Selected Features:")
print(selected_features)
Top 10 Selected Features:
['AMPkHrVol', 'AMVolume', 'PMPkHrVol', 'PMVolume', 'PctCars', 'PostedSpeed', 'X', 'ADTVolume', 'Y', 'Month']
Top 10 Selected Features:
['AMPkHrVol', 'AMVolume', 'PMPkHrVol', 'PMVolume', 'PctCars', 'PostedSpeed', 'X', 'ADTVolume', 'Y', 'Month']
# Check correlation for selected features
correlation_matrix = df_subset[[target] + selected_features].corr()
# Plotting heatmap
plt.figure(figsize=(10, 8))
sns.heatmap(correlation_matrix, annot=True, cmap='coolwarm', fmt=".2f", linewidths=.5)
plt.title('Correlation Matrix Between Selected Features')
plt.show()
# Split the data into training and testing sets
X_train, X_test, y_train, y_test = train_test_split(X[selected_features], y, test_size=0.2, random_state=17, stratify=y)
# determine hyperparameters
param_grid = {
'max_depth': [10],
'min_samples_leaf': [20],
'max_features': list(range(2,11))
}
gridSearch = GridSearchCV(DecisionTreeClassifier(random_state=17),
param_grid, cv=5, n_jobs=-1)
gridSearch.fit(X_train, y_train)
print('Score: ', gridSearch.best_score_)
best_params = gridSearch.best_params_
print('Parameters: ', best_params)
Score: 0.8364648311127025
Parameters: {'max_depth': 10, 'max_features': 7, 'min_samples_leaf': 20}
Score: 0.8364648311127025
Parameters: {'max_depth': 10, 'max_features': 7, 'min_samples_leaf': 20}
Model Building:
Decision Tree
# Train & Predict
tree_model = DecisionTreeClassifier(random_state=17,
max_depth=best_params['max_depth'],
min_samples_leaf=best_params['min_samples_leaf'],
max_features=best_params['max_features'])
tree_model.fit(X_train, y_train)
tree_predictions = tree_model.predict(X_test)
# Print decision tree rules
tree_rules = export_text(tree_model, feature_names=list(X_train.columns))
print("Decision Tree Rules:")
print(tree_rules)
Decision Tree Rules:
|--- AMVolume <= 262.50
| |--- X <= -13645958.50
| | |--- AMVolume <= 63.50
| | | |--- PMVolume <= 74.50
| | | | |--- Y <= 5702417.00
| | | | | |--- Y <= 5697200.50
| | | | | | |--- class: 0
| | | | | |--- Y > 5697200.50
| | | | | | |--- class: 0
| | | | |--- Y > 5702417.00
| | | | | |--- ADTVolume <= 90.50
| | | | | | |--- Month <= 5.50
| | | | | | | |--- class: 0
| | | | | | |--- Month > 5.50
| | | | | | | |--- class: 0
| | | | | |--- ADTVolume > 90.50
| | | | | | |--- class: 0
| | | |--- PMVolume > 74.50
| | | | |--- Month <= 3.50
| | | | | |--- PostedSpeed <= 22.50
| | | | | | |--- Y <= 5708024.75
| | | | | | | |--- PMVolume <= 121.50
| | | | | | | | |--- class: 0
| | | | | | | |--- PMVolume > 121.50
| | | | | | | | |--- class: 1
| | | | | | |--- Y > 5708024.75
| | | | | | | |--- class: 1
| | | | | |--- PostedSpeed > 22.50
| | | | | | |--- class: 0
| | | | |--- Month > 3.50
| | | | | |--- Y <= 5707250.00
| | | | | | |--- X <= -13650135.00
| | | | | | | |--- Y <= 5701115.00
| | | | | | | | |--- class: 0
| | | | | | | |--- Y > 5701115.00
| | | | | | | | |--- AMVolume <= 51.50
| | | | | | | | | |--- class: 0
| | | | | | | | |--- AMVolume > 51.50
| | | | | | | | | |--- class: 0
| | | | | | |--- X > -13650135.00
| | | | | | | |--- class: 0
| | | | | |--- Y > 5707250.00
| | | | | | |--- Month <= 9.50
| | | | | | | |--- PctCars <= 95.65
| | | | | | | | |--- class: 0
| | | | | | | |--- PctCars > 95.65
| | | | | | | | |--- class: 0
| | | | | | |--- Month > 9.50
| | | | | | | |--- class: 1
| | |--- AMVolume > 63.50
| | | |--- PctCars <= 97.35
| | | | |--- Y <= 5710675.50
| | | | | |--- Y <= 5700892.50
| | | | | | |--- PctCars <= 95.85
| | | | | | | |--- PMPkHrVol <= 36.50
| | | | | | | | |--- Y <= 5697090.25
| | | | | | | | | |--- X <= -13658192.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- X > -13658192.50
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- Y > 5697090.25
| | | | | | | | | |--- class: 1
| | | | | | | |--- PMPkHrVol > 36.50
| | | | | | | | |--- X <= -13659513.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- X > -13659513.50
| | | | | | | | | |--- PMVolume <= 257.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PMVolume > 257.50
| | | | | | | | | | |--- class: 1
| | | | | | |--- PctCars > 95.85
| | | | | | | |--- PostedSpeed <= 22.50
| | | | | | | | |--- Y <= 5696863.25
| | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5696863.25
| | | | | | | | | |--- class: 1
| | | | | | | |--- PostedSpeed > 22.50
| | | | | | | | |--- class: 0
| | | | | |--- Y > 5700892.50
| | | | | | |--- PostedSpeed <= 22.50
| | | | | | | |--- PMVolume <= 228.50
| | | | | | | | |--- ADTVolume <= 217.50
| | | | | | | | | |--- Y <= 5706837.50
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- Y > 5706837.50
| | | | | | | | | | |--- class: 1
| | | | | | | | |--- ADTVolume > 217.50
| | | | | | | | | |--- PMVolume <= 169.50
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- PMVolume > 169.50
| | | | | | | | | | |--- class: 1
| | | | | | | |--- PMVolume > 228.50
| | | | | | | | |--- X <= -13656465.50
| | | | | | | | | |--- X <= -13657555.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- X > -13657555.50
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- X > -13656465.50
| | | | | | | | | |--- Y <= 5708405.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- Y > 5708405.50
| | | | | | | | | | |--- class: 1
| | | | | | |--- PostedSpeed > 22.50
| | | | | | | |--- PMVolume <= 446.50
| | | | | | | | |--- ADTVolume <= 270.50
| | | | | | | | | |--- Month <= 4.50
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- Month > 4.50
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- ADTVolume > 270.50
| | | | | | | | | |--- PMVolume <= 234.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PMVolume > 234.50
| | | | | | | | | | |--- class: 0
| | | | | | | |--- PMVolume > 446.50
| | | | | | | | |--- class: 1
| | | | |--- Y > 5710675.50
| | | | | |--- PMVolume <= 206.50
| | | | | | |--- Y <= 5714802.50
| | | | | | | |--- AMVolume <= 80.50
| | | | | | | | |--- class: 1
| | | | | | | |--- AMVolume > 80.50
| | | | | | | | |--- class: 1
| | | | | | |--- Y > 5714802.50
| | | | | | | |--- class: 1
| | | | | |--- PMVolume > 206.50
| | | | | | |--- PMVolume <= 316.50
| | | | | | | |--- AMPkHrVol <= 33.50
| | | | | | | | |--- X <= -13660621.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- X > -13660621.50
| | | | | | | | | |--- class: 1
| | | | | | | |--- AMPkHrVol > 33.50
| | | | | | | | |--- class: 1
| | | | | | |--- PMVolume > 316.50
| | | | | | | |--- PMPkHrVol <= 80.00
| | | | | | | | |--- class: 1
| | | | | | | |--- PMPkHrVol > 80.00
| | | | | | | | |--- class: 1
| | | |--- PctCars > 97.35
| | | | |--- X <= -13650381.00
| | | | | |--- Y <= 5701628.25
| | | | | | |--- PMPkHrVol <= 43.50
| | | | | | | |--- class: 0
| | | | | | |--- PMPkHrVol > 43.50
| | | | | | | |--- class: 0
| | | | | |--- Y > 5701628.25
| | | | | | |--- ADTVolume <= 279.00
| | | | | | | |--- class: 0
| | | | | | |--- ADTVolume > 279.00
| | | | | | | |--- X <= -13650837.00
| | | | | | | | |--- Y <= 5706611.00
| | | | | | | | | |--- AMPkHrVol <= 38.00
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- AMPkHrVol > 38.00
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- Y > 5706611.00
| | | | | | | | | |--- class: 1
| | | | | | | |--- X > -13650837.00
| | | | | | | | |--- class: 0
| | | | |--- X > -13650381.00
| | | | | |--- Y <= 5707354.75
| | | | | | |--- Y <= 5703056.25
| | | | | | | |--- class: 1
| | | | | | |--- Y > 5703056.25
| | | | | | | |--- PctCars <= 97.85
| | | | | | | | |--- class: 1
| | | | | | | |--- PctCars > 97.85
| | | | | | | | |--- class: 0
| | | | | |--- Y > 5707354.75
| | | | | | |--- class: 1
| |--- X > -13645958.50
| | |--- Month <= 5.50
| | | |--- Y <= 5708819.00
| | | | |--- AMPkHrVol <= 25.50
| | | | | |--- AMPkHrVol <= 13.50
| | | | | | |--- class: 1
| | | | | |--- AMPkHrVol > 13.50
| | | | | | |--- class: 1
| | | | |--- AMPkHrVol > 25.50
| | | | | |--- PMVolume <= 314.50
| | | | | | |--- class: 1
| | | | | |--- PMVolume > 314.50
| | | | | | |--- class: 1
| | | |--- Y > 5708819.00
| | | | |--- class: 1
| | |--- Month > 5.50
| | | |--- PctCars <= 96.65
| | | | |--- PMPkHrVol <= 14.50
| | | | | |--- class: 1
| | | | |--- PMPkHrVol > 14.50
| | | | | |--- X <= -13642374.00
| | | | | | |--- X <= -13645112.00
| | | | | | | |--- class: 1
| | | | | | |--- X > -13645112.00
| | | | | | | |--- class: 1
| | | | | |--- X > -13642374.00
| | | | | | |--- Y <= 5706861.75
| | | | | | | |--- class: 1
| | | | | | |--- Y > 5706861.75
| | | | | | | |--- class: 1
| | | |--- PctCars > 96.65
| | | | |--- class: 1
|--- AMVolume > 262.50
| |--- PctCars <= 95.75
| | |--- AMVolume <= 1172.50
| | | |--- X <= -13646288.50
| | | | |--- X <= -13660894.50
| | | | | |--- AMVolume <= 721.50
| | | | | | |--- class: 1
| | | | | |--- AMVolume > 721.50
| | | | | | |--- Y <= 5714154.25
| | | | | | | |--- class: 1
| | | | | | |--- Y > 5714154.25
| | | | | | | |--- class: 1
| | | | |--- X > -13660894.50
| | | | | |--- Month <= 7.50
| | | | | | |--- Y <= 5705188.50
| | | | | | | |--- AMVolume <= 1033.50
| | | | | | | | |--- Y <= 5702413.50
| | | | | | | | | |--- PMPkHrVol <= 294.00
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PMPkHrVol > 294.00
| | | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5702413.50
| | | | | | | | | |--- class: 1
| | | | | | | |--- AMVolume > 1033.50
| | | | | | | | |--- AMPkHrVol <= 221.00
| | | | | | | | | |--- class: 1
| | | | | | | | |--- AMPkHrVol > 221.00
| | | | | | | | | |--- class: 1
| | | | | | |--- Y > 5705188.50
| | | | | | | |--- AMVolume <= 908.50
| | | | | | | | |--- PctCars <= 92.55
| | | | | | | | | |--- class: 1
| | | | | | | | |--- PctCars > 92.55
| | | | | | | | | |--- Y <= 5711040.75
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- Y > 5711040.75
| | | | | | | | | | |--- class: 1
| | | | | | | |--- AMVolume > 908.50
| | | | | | | | |--- class: 1
| | | | | |--- Month > 7.50
| | | | | | |--- ADTVolume <= 899.50
| | | | | | | |--- class: 1
| | | | | | |--- ADTVolume > 899.50
| | | | | | | |--- Y <= 5708754.00
| | | | | | | | |--- Y <= 5704862.50
| | | | | | | | | |--- AMPkHrVol <= 225.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- AMPkHrVol > 225.50
| | | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5704862.50
| | | | | | | | | |--- PMPkHrVol <= 215.00
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- PMPkHrVol > 215.00
| | | | | | | | | | |--- class: 1
| | | | | | | |--- Y > 5708754.00
| | | | | | | | |--- class: 1
| | | |--- X > -13646288.50
| | | | |--- PMPkHrVol <= 92.50
| | | | | |--- class: 1
| | | | |--- PMPkHrVol > 92.50
| | | | | |--- X <= -13636547.00
| | | | | | |--- class: 1
| | | | | |--- X > -13636547.00
| | | | | | |--- class: 1
| | |--- AMVolume > 1172.50
| | | |--- Y <= 5694779.75
| | | | |--- class: 1
| | | |--- Y > 5694779.75
| | | | |--- ADTVolume <= 3358.50
| | | | | |--- PctCars <= 94.25
| | | | | | |--- class: 1
| | | | | |--- PctCars > 94.25
| | | | | | |--- class: 1
| | | | |--- ADTVolume > 3358.50
| | | | | |--- Y <= 5696825.75
| | | | | | |--- Month <= 5.50
| | | | | | | |--- class: 1
| | | | | | |--- Month > 5.50
| | | | | | | |--- class: 1
| | | | | |--- Y > 5696825.75
| | | | | | |--- Month <= 11.50
| | | | | | | |--- Month <= 2.50
| | | | | | | | |--- AMVolume <= 1614.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- AMVolume > 1614.50
| | | | | | | | | |--- class: 1
| | | | | | | |--- Month > 2.50
| | | | | | | | |--- PctCars <= 94.75
| | | | | | | | | |--- class: 1
| | | | | | | | |--- PctCars > 94.75
| | | | | | | | | |--- ADTVolume <= 9736.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- ADTVolume > 9736.50
| | | | | | | | | | |--- class: 1
| | | | | | |--- Month > 11.50
| | | | | | | |--- PMVolume <= 3003.00
| | | | | | | | |--- class: 1
| | | | | | | |--- PMVolume > 3003.00
| | | | | | | | |--- class: 1
| |--- PctCars > 95.75
| | |--- PMVolume <= 2022.50
| | | |--- X <= -13649647.50
| | | | |--- X <= -13659285.00
| | | | | |--- PctCars <= 96.35
| | | | | | |--- class: 1
| | | | | |--- PctCars > 96.35
| | | | | | |--- ADTVolume <= 1979.50
| | | | | | | |--- class: 1
| | | | | | |--- ADTVolume > 1979.50
| | | | | | | |--- class: 1
| | | | |--- X > -13659285.00
| | | | | |--- Y <= 5708073.25
| | | | | | |--- X <= -13658741.00
| | | | | | | |--- class: 0
| | | | | | |--- X > -13658741.00
| | | | | | | |--- Y <= 5699886.00
| | | | | | | | |--- Y <= 5696777.75
| | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5696777.75
| | | | | | | | | |--- class: 1
| | | | | | | |--- Y > 5699886.00
| | | | | | | | |--- X <= -13655722.00
| | | | | | | | | |--- class: 0
| | | | | | | | |--- X > -13655722.00
| | | | | | | | | |--- PctCars <= 98.35
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PctCars > 98.35
| | | | | | | | | | |--- class: 0
| | | | | |--- Y > 5708073.25
| | | | | | |--- class: 1
| | | |--- X > -13649647.50
| | | | |--- Month <= 8.50
| | | | | |--- PMPkHrVol <= 190.50
| | | | | | |--- class: 1
| | | | | |--- PMPkHrVol > 190.50
| | | | | | |--- class: 1
| | | | |--- Month > 8.50
| | | | | |--- class: 1
| | |--- PMVolume > 2022.50
| | | |--- X <= -13651133.00
| | | | |--- Y <= 5698353.75
| | | | | |--- class: 1
| | | | |--- Y > 5698353.75
| | | | | |--- ADTVolume <= 3321.00
| | | | | | |--- class: 1
| | | | | |--- ADTVolume > 3321.00
| | | | | | |--- PMPkHrVol <= 382.50
| | | | | | | |--- class: 1
| | | | | | |--- PMPkHrVol > 382.50
| | | | | | | |--- ADTVolume <= 6976.00
| | | | | | | | |--- X <= -13659386.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- X > -13659386.50
| | | | | | | | | |--- X <= -13655631.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- X > -13655631.50
| | | | | | | | | | |--- class: 1
| | | | | | | |--- ADTVolume > 6976.00
| | | | | | | | |--- class: 1
| | | |--- X > -13651133.00
| | | | |--- ADTVolume <= 7612.00
| | | | | |--- Month <= 9.50
| | | | | | |--- class: 1
| | | | | |--- Month > 9.50
| | | | | | |--- class: 1
| | | | |--- ADTVolume > 7612.00
| | | | | |--- class: 1
Decision Tree Rules:
|--- AMVolume <= 262.50
| |--- X <= -13645958.50
| | |--- AMVolume <= 63.50
| | | |--- PMVolume <= 74.50
| | | | |--- Y <= 5702417.00
| | | | | |--- Y <= 5697200.50
| | | | | | |--- class: 0
| | | | | |--- Y > 5697200.50
| | | | | | |--- class: 0
| | | | |--- Y > 5702417.00
| | | | | |--- ADTVolume <= 90.50
| | | | | | |--- Month <= 5.50
| | | | | | | |--- class: 0
| | | | | | |--- Month > 5.50
| | | | | | | |--- class: 0
| | | | | |--- ADTVolume > 90.50
| | | | | | |--- class: 0
| | | |--- PMVolume > 74.50
| | | | |--- Month <= 3.50
| | | | | |--- PostedSpeed <= 22.50
| | | | | | |--- Y <= 5708024.75
| | | | | | | |--- PMVolume <= 121.50
| | | | | | | | |--- class: 0
| | | | | | | |--- PMVolume > 121.50
| | | | | | | | |--- class: 1
| | | | | | |--- Y > 5708024.75
| | | | | | | |--- class: 1
| | | | | |--- PostedSpeed > 22.50
| | | | | | |--- class: 0
| | | | |--- Month > 3.50
| | | | | |--- Y <= 5707250.00
| | | | | | |--- X <= -13650135.00
| | | | | | | |--- Y <= 5701115.00
| | | | | | | | |--- class: 0
| | | | | | | |--- Y > 5701115.00
| | | | | | | | |--- AMVolume <= 51.50
| | | | | | | | | |--- class: 0
| | | | | | | | |--- AMVolume > 51.50
| | | | | | | | | |--- class: 0
| | | | | | |--- X > -13650135.00
| | | | | | | |--- class: 0
| | | | | |--- Y > 5707250.00
| | | | | | |--- Month <= 9.50
| | | | | | | |--- PctCars <= 95.65
| | | | | | | | |--- class: 0
| | | | | | | |--- PctCars > 95.65
| | | | | | | | |--- class: 0
| | | | | | |--- Month > 9.50
| | | | | | | |--- class: 1
| | |--- AMVolume > 63.50
| | | |--- PctCars <= 97.35
| | | | |--- Y <= 5710675.50
| | | | | |--- Y <= 5700892.50
| | | | | | |--- PctCars <= 95.85
| | | | | | | |--- PMPkHrVol <= 36.50
| | | | | | | | |--- Y <= 5697090.25
| | | | | | | | | |--- X <= -13658192.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- X > -13658192.50
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- Y > 5697090.25
| | | | | | | | | |--- class: 1
| | | | | | | |--- PMPkHrVol > 36.50
| | | | | | | | |--- X <= -13659513.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- X > -13659513.50
| | | | | | | | | |--- PMVolume <= 257.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PMVolume > 257.50
| | | | | | | | | | |--- class: 1
| | | | | | |--- PctCars > 95.85
| | | | | | | |--- PostedSpeed <= 22.50
| | | | | | | | |--- Y <= 5696863.25
| | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5696863.25
| | | | | | | | | |--- class: 1
| | | | | | | |--- PostedSpeed > 22.50
| | | | | | | | |--- class: 0
| | | | | |--- Y > 5700892.50
| | | | | | |--- PostedSpeed <= 22.50
| | | | | | | |--- PMVolume <= 228.50
| | | | | | | | |--- ADTVolume <= 217.50
| | | | | | | | | |--- Y <= 5706837.50
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- Y > 5706837.50
| | | | | | | | | | |--- class: 1
| | | | | | | | |--- ADTVolume > 217.50
| | | | | | | | | |--- PMVolume <= 169.50
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- PMVolume > 169.50
| | | | | | | | | | |--- class: 1
| | | | | | | |--- PMVolume > 228.50
| | | | | | | | |--- X <= -13656465.50
| | | | | | | | | |--- X <= -13657555.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- X > -13657555.50
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- X > -13656465.50
| | | | | | | | | |--- Y <= 5708405.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- Y > 5708405.50
| | | | | | | | | | |--- class: 1
| | | | | | |--- PostedSpeed > 22.50
| | | | | | | |--- PMVolume <= 446.50
| | | | | | | | |--- ADTVolume <= 270.50
| | | | | | | | | |--- Month <= 4.50
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- Month > 4.50
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- ADTVolume > 270.50
| | | | | | | | | |--- PMVolume <= 234.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PMVolume > 234.50
| | | | | | | | | | |--- class: 0
| | | | | | | |--- PMVolume > 446.50
| | | | | | | | |--- class: 1
| | | | |--- Y > 5710675.50
| | | | | |--- PMVolume <= 206.50
| | | | | | |--- Y <= 5714802.50
| | | | | | | |--- AMVolume <= 80.50
| | | | | | | | |--- class: 1
| | | | | | | |--- AMVolume > 80.50
| | | | | | | | |--- class: 1
| | | | | | |--- Y > 5714802.50
| | | | | | | |--- class: 1
| | | | | |--- PMVolume > 206.50
| | | | | | |--- PMVolume <= 316.50
| | | | | | | |--- AMPkHrVol <= 33.50
| | | | | | | | |--- X <= -13660621.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- X > -13660621.50
| | | | | | | | | |--- class: 1
| | | | | | | |--- AMPkHrVol > 33.50
| | | | | | | | |--- class: 1
| | | | | | |--- PMVolume > 316.50
| | | | | | | |--- PMPkHrVol <= 80.00
| | | | | | | | |--- class: 1
| | | | | | | |--- PMPkHrVol > 80.00
| | | | | | | | |--- class: 1
| | | |--- PctCars > 97.35
| | | | |--- X <= -13650381.00
| | | | | |--- Y <= 5701628.25
| | | | | | |--- PMPkHrVol <= 43.50
| | | | | | | |--- class: 0
| | | | | | |--- PMPkHrVol > 43.50
| | | | | | | |--- class: 0
| | | | | |--- Y > 5701628.25
| | | | | | |--- ADTVolume <= 279.00
| | | | | | | |--- class: 0
| | | | | | |--- ADTVolume > 279.00
| | | | | | | |--- X <= -13650837.00
| | | | | | | | |--- Y <= 5706611.00
| | | | | | | | | |--- AMPkHrVol <= 38.00
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- AMPkHrVol > 38.00
| | | | | | | | | | |--- class: 0
| | | | | | | | |--- Y > 5706611.00
| | | | | | | | | |--- class: 1
| | | | | | | |--- X > -13650837.00
| | | | | | | | |--- class: 0
| | | | |--- X > -13650381.00
| | | | | |--- Y <= 5707354.75
| | | | | | |--- Y <= 5703056.25
| | | | | | | |--- class: 1
| | | | | | |--- Y > 5703056.25
| | | | | | | |--- PctCars <= 97.85
| | | | | | | | |--- class: 1
| | | | | | | |--- PctCars > 97.85
| | | | | | | | |--- class: 0
| | | | | |--- Y > 5707354.75
| | | | | | |--- class: 1
| |--- X > -13645958.50
| | |--- Month <= 5.50
| | | |--- Y <= 5708819.00
| | | | |--- AMPkHrVol <= 25.50
| | | | | |--- AMPkHrVol <= 13.50
| | | | | | |--- class: 1
| | | | | |--- AMPkHrVol > 13.50
| | | | | | |--- class: 1
| | | | |--- AMPkHrVol > 25.50
| | | | | |--- PMVolume <= 314.50
| | | | | | |--- class: 1
| | | | | |--- PMVolume > 314.50
| | | | | | |--- class: 1
| | | |--- Y > 5708819.00
| | | | |--- class: 1
| | |--- Month > 5.50
| | | |--- PctCars <= 96.65
| | | | |--- PMPkHrVol <= 14.50
| | | | | |--- class: 1
| | | | |--- PMPkHrVol > 14.50
| | | | | |--- X <= -13642374.00
| | | | | | |--- X <= -13645112.00
| | | | | | | |--- class: 1
| | | | | | |--- X > -13645112.00
| | | | | | | |--- class: 1
| | | | | |--- X > -13642374.00
| | | | | | |--- Y <= 5706861.75
| | | | | | | |--- class: 1
| | | | | | |--- Y > 5706861.75
| | | | | | | |--- class: 1
| | | |--- PctCars > 96.65
| | | | |--- class: 1
|--- AMVolume > 262.50
| |--- PctCars <= 95.75
| | |--- AMVolume <= 1172.50
| | | |--- X <= -13646288.50
| | | | |--- X <= -13660894.50
| | | | | |--- AMVolume <= 721.50
| | | | | | |--- class: 1
| | | | | |--- AMVolume > 721.50
| | | | | | |--- Y <= 5714154.25
| | | | | | | |--- class: 1
| | | | | | |--- Y > 5714154.25
| | | | | | | |--- class: 1
| | | | |--- X > -13660894.50
| | | | | |--- Month <= 7.50
| | | | | | |--- Y <= 5705188.50
| | | | | | | |--- AMVolume <= 1033.50
| | | | | | | | |--- Y <= 5702413.50
| | | | | | | | | |--- PMPkHrVol <= 294.00
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PMPkHrVol > 294.00
| | | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5702413.50
| | | | | | | | | |--- class: 1
| | | | | | | |--- AMVolume > 1033.50
| | | | | | | | |--- AMPkHrVol <= 221.00
| | | | | | | | | |--- class: 1
| | | | | | | | |--- AMPkHrVol > 221.00
| | | | | | | | | |--- class: 1
| | | | | | |--- Y > 5705188.50
| | | | | | | |--- AMVolume <= 908.50
| | | | | | | | |--- PctCars <= 92.55
| | | | | | | | | |--- class: 1
| | | | | | | | |--- PctCars > 92.55
| | | | | | | | | |--- Y <= 5711040.75
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- Y > 5711040.75
| | | | | | | | | | |--- class: 1
| | | | | | | |--- AMVolume > 908.50
| | | | | | | | |--- class: 1
| | | | | |--- Month > 7.50
| | | | | | |--- ADTVolume <= 899.50
| | | | | | | |--- class: 1
| | | | | | |--- ADTVolume > 899.50
| | | | | | | |--- Y <= 5708754.00
| | | | | | | | |--- Y <= 5704862.50
| | | | | | | | | |--- AMPkHrVol <= 225.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- AMPkHrVol > 225.50
| | | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5704862.50
| | | | | | | | | |--- PMPkHrVol <= 215.00
| | | | | | | | | | |--- class: 0
| | | | | | | | | |--- PMPkHrVol > 215.00
| | | | | | | | | | |--- class: 1
| | | | | | | |--- Y > 5708754.00
| | | | | | | | |--- class: 1
| | | |--- X > -13646288.50
| | | | |--- PMPkHrVol <= 92.50
| | | | | |--- class: 1
| | | | |--- PMPkHrVol > 92.50
| | | | | |--- X <= -13636547.00
| | | | | | |--- class: 1
| | | | | |--- X > -13636547.00
| | | | | | |--- class: 1
| | |--- AMVolume > 1172.50
| | | |--- Y <= 5694779.75
| | | | |--- class: 1
| | | |--- Y > 5694779.75
| | | | |--- ADTVolume <= 3358.50
| | | | | |--- PctCars <= 94.25
| | | | | | |--- class: 1
| | | | | |--- PctCars > 94.25
| | | | | | |--- class: 1
| | | | |--- ADTVolume > 3358.50
| | | | | |--- Y <= 5696825.75
| | | | | | |--- Month <= 5.50
| | | | | | | |--- class: 1
| | | | | | |--- Month > 5.50
| | | | | | | |--- class: 1
| | | | | |--- Y > 5696825.75
| | | | | | |--- Month <= 11.50
| | | | | | | |--- Month <= 2.50
| | | | | | | | |--- AMVolume <= 1614.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- AMVolume > 1614.50
| | | | | | | | | |--- class: 1
| | | | | | | |--- Month > 2.50
| | | | | | | | |--- PctCars <= 94.75
| | | | | | | | | |--- class: 1
| | | | | | | | |--- PctCars > 94.75
| | | | | | | | | |--- ADTVolume <= 9736.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- ADTVolume > 9736.50
| | | | | | | | | | |--- class: 1
| | | | | | |--- Month > 11.50
| | | | | | | |--- PMVolume <= 3003.00
| | | | | | | | |--- class: 1
| | | | | | | |--- PMVolume > 3003.00
| | | | | | | | |--- class: 1
| |--- PctCars > 95.75
| | |--- PMVolume <= 2022.50
| | | |--- X <= -13649647.50
| | | | |--- X <= -13659285.00
| | | | | |--- PctCars <= 96.35
| | | | | | |--- class: 1
| | | | | |--- PctCars > 96.35
| | | | | | |--- ADTVolume <= 1979.50
| | | | | | | |--- class: 1
| | | | | | |--- ADTVolume > 1979.50
| | | | | | | |--- class: 1
| | | | |--- X > -13659285.00
| | | | | |--- Y <= 5708073.25
| | | | | | |--- X <= -13658741.00
| | | | | | | |--- class: 0
| | | | | | |--- X > -13658741.00
| | | | | | | |--- Y <= 5699886.00
| | | | | | | | |--- Y <= 5696777.75
| | | | | | | | | |--- class: 1
| | | | | | | | |--- Y > 5696777.75
| | | | | | | | | |--- class: 1
| | | | | | | |--- Y > 5699886.00
| | | | | | | | |--- X <= -13655722.00
| | | | | | | | | |--- class: 0
| | | | | | | | |--- X > -13655722.00
| | | | | | | | | |--- PctCars <= 98.35
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- PctCars > 98.35
| | | | | | | | | | |--- class: 0
| | | | | |--- Y > 5708073.25
| | | | | | |--- class: 1
| | | |--- X > -13649647.50
| | | | |--- Month <= 8.50
| | | | | |--- PMPkHrVol <= 190.50
| | | | | | |--- class: 1
| | | | | |--- PMPkHrVol > 190.50
| | | | | | |--- class: 1
| | | | |--- Month > 8.50
| | | | | |--- class: 1
| | |--- PMVolume > 2022.50
| | | |--- X <= -13651133.00
| | | | |--- Y <= 5698353.75
| | | | | |--- class: 1
| | | | |--- Y > 5698353.75
| | | | | |--- ADTVolume <= 3321.00
| | | | | | |--- class: 1
| | | | | |--- ADTVolume > 3321.00
| | | | | | |--- PMPkHrVol <= 382.50
| | | | | | | |--- class: 1
| | | | | | |--- PMPkHrVol > 382.50
| | | | | | | |--- ADTVolume <= 6976.00
| | | | | | | | |--- X <= -13659386.50
| | | | | | | | | |--- class: 1
| | | | | | | | |--- X > -13659386.50
| | | | | | | | | |--- X <= -13655631.50
| | | | | | | | | | |--- class: 1
| | | | | | | | | |--- X > -13655631.50
| | | | | | | | | | |--- class: 1
| | | | | | | |--- ADTVolume > 6976.00
| | | | | | | | |--- class: 1
| | | |--- X > -13651133.00
| | | | |--- ADTVolume <= 7612.00
| | | | | |--- Month <= 9.50
| | | | | | |--- class: 1
| | | | | |--- Month > 9.50
| | | | | | |--- class: 1
| | | | |--- ADTVolume > 7612.00
| | | | | |--- class: 1
# Tree Rules Figure
plt.figure(figsize=(24, 16))
plot_tree(tree_model, feature_names=list(X_train.columns), class_names=['Over10Speeing', 'NoSpeedingOver10'], filled=True, rounded=True, proportion=True)
plt.show()
# Sets for iteration
datasets = [(X_train, y_train, "Training"), (X_test, y_test, "Testing")]
for data, labels, dataset_name in datasets:
# Predictions
tree_predictions = tree_model.predict(data)
tree_conf_matrix = confusion_matrix(labels, tree_predictions)
# Performance Metrics
accuracy = round(accuracy_score(labels, tree_predictions), 3)
precision = round(precision_score(labels, tree_predictions), 3)
recall = round(recall_score(labels, tree_predictions), 3)
print(f"\n{dataset_name} Performance:")
print(f"Accuracy: {accuracy}")
print(f"Precision: {precision}")
print(f"Recall: {recall}")
# Confusion Matrix
group_names = ['True Neg', 'False Pos', 'False Neg', 'True Pos']
group_counts = ["{0:0.0f}".format(value) for value in tree_conf_matrix.flatten()]
group_percentages = ["{0:.0%}".format(value) for value in tree_conf_matrix.flatten() / np.sum(tree_conf_matrix)]
labels = [f"{v1}\n{v2}\n{v3}" for v1, v2, v3 in zip(group_names, group_counts, group_percentages)]
labels = np.asarray(labels).reshape(2, 2)
# Plot Confusion Matrix
plt.figure(figsize=(8, 6))
sns.heatmap(tree_conf_matrix, annot=labels, fmt='', cmap='Blues', cbar=False)
plt.title(f'Decision Tree Confusion Matrix - {dataset_name} Data')
plt.show()
Training Performance:
Accuracy: 0.872
Precision: 0.899
Recall: 0.948
Training Performance:
Accuracy: 0.872
Precision: 0.899
Recall: 0.948
Testing Performance:
Accuracy: 0.826
Precision: 0.874
Recall: 0.916
Testing Performance:
Accuracy: 0.826
Precision: 0.874
Recall: 0.916
# Identify the most important features
importances = tree_model.feature_importances_
top_features = np.argsort(importances)[::-1][:5] # Where 5 is the number of features you want to select
# Print the top features
print("Top Features:")
for feature_index in top_features:
print(X_train.columns[feature_index])
# keep top features & scale the data
scaler = StandardScaler()
X_train_final = scaler.fit_transform(X_train.iloc[:, top_features])
X_test_final = scaler.transform(X_test.iloc[:, top_features])
Top Features:
AMVolume
Y
X
PctCars
PMVolume
Top Features:
AMVolume
Y
X
PctCars
PMVolume
New top 5 predictors based on the decision tree, utilised for each model from here on
# Save the top features into a new predictor X
X_top_features = X.iloc[:, top_features]
# Split the data into training and testing sets using new predictors selected in decision tree
X_train, X_test, y_train, y_test = train_test_split(X_top_features, y, test_size=0.2, random_state=17, stratify=y)
Random Forest
# Train & Predict
rf_model = RandomForestRegressor(random_state=17)
rf_model.fit(X_train, y_train)
train_predictions = rf_model.predict(X_train)
test_predictions = rf_model.predict(X_test)
# Performance
print("Performance Metrics:\n")
# Training Set
print("Training Performance:")
print(f"MSE: {mean_squared_error(y_train, train_predictions)}")
print(f"R-squared: {r2_score(y_train, train_predictions)}")
# Testing Set
print("\nTesting Performance:")
print(f"MSE: {mean_squared_error(y_test, test_predictions)}")
print(f"R-squared: {r2_score(y_test, test_predictions)}")
Performance Metrics:
Training Performance:
MSE: 0.014233238837703754
R-squared: 0.9103972386141846
Testing Performance:
MSE: 0.11146888731396173
R-squared: 0.29732085628886595
Performance Metrics:
Training Performance:
MSE: 0.014233238837703754
R-squared: 0.9103972386141846
Testing Performance:
MSE: 0.11146888731396173
R-squared: 0.29732085628886595
Logistic Regression
# Train the model
logistic_model = LogisticRegression(random_state=17)
logistic_model.fit(X_train, y_train)
logistic_train_predictions = logistic_model.predict(X_train)
logistic_test_predictions = logistic_model.predict(X_test)
# Print Intercept
print(f"Y-Intercept Value: {logistic_model.intercept_[0]}")
# Print Coefficients
coefficients_df = pd.DataFrame({'Predictor': X_top_features.columns, 'Coefficient': logistic_model.coef_[0]})
print("\nCoefficients:")
print(coefficients_df)
Y-Intercept Value: 3.430078655417783e-09
Coefficients:
Predictor Coefficient
0 AMVolume 0.000619
1 Y 0.000033
2 X 0.000014
3 PctCars -0.000060
4 PMVolume 0.000718
Y-Intercept Value: 3.430078655417783e-09
Coefficients:
Predictor Coefficient
0 AMVolume 0.000619
1 Y 0.000033
2 X 0.000014
3 PctCars -0.000060
4 PMVolume 0.000718
# LOGISTIC REGRESSION PERFORMANCE
print("Logistic Regression Performance Metrics:\n")
# Sets for iteration
datasets = [(X_train, y_train, "Training"), (X_test, y_test, "Testing")]
for data, labels, dataset_name in datasets:
# Predictions
logistic_predictions = logistic_model.predict(data)
logistic_conf_matrix = confusion_matrix(labels, logistic_predictions)
# Performance Metrics
logistic_accuracy = round(accuracy_score(labels, logistic_predictions), 3)
logistic_precision = round(precision_score(labels, logistic_predictions), 3)
logistic_recall = round(recall_score(labels, logistic_predictions), 3)
print(f"\n{dataset_name} Performance:")
print(f"Accuracy: {logistic_accuracy}")
print(f"Precision: {logistic_precision}")
print(f"Recall: {logistic_recall}")
# Confusion Matrix
group_names = ['True Neg', 'False Pos', 'False Neg', 'True Pos']
group_counts = ["{0:0.0f}".format(value) for value in logistic_conf_matrix.flatten()]
group_percentages = ["{0:.0%}".format(value) for value in logistic_conf_matrix.flatten() / np.sum(logistic_conf_matrix)]
labels = [f"{v1}\n{v2}\n{v3}" for v1, v2, v3 in zip(group_names, group_counts, group_percentages)]
labels = np.asarray(labels).reshape(2, 2)
# Plot Confusion Matrix
plt.figure(figsize=(8, 6))
sns.heatmap(logistic_conf_matrix, annot=labels, fmt='', cmap='Blues', cbar=False)
plt.title(f'Logistic Regression Confusion Matrix - {dataset_name} Data')
plt.show()
Logistic Regression Performance Metrics:
Training Performance:
Accuracy: 0.802
Precision: 0.803
Recall: 0.998
Logistic Regression Performance Metrics:
Training Performance:
Accuracy: 0.802
Precision: 0.803
Recall: 0.998
Testing Performance:
Accuracy: 0.802
Precision: 0.803
Recall: 0.997
Testing Performance:
Accuracy: 0.802
Precision: 0.803
Recall: 0.997
K-NN Classifier
# Standardize
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled = scaler.transform(X_test)
# Train the KNN classifier
knn_classifier = KNeighborsClassifier(n_neighbors=5)
knn_classifier.fit(X_train_scaled, y_train)
# Predict
train_predictions = knn_classifier.predict(X_train_scaled)
test_predictions = knn_classifier.predict(X_test_scaled)
# KNN PERFORMANCE
print("KNN Performance Metrics:\n")
# Sets for iteration
datasets = [(X_train_scaled, y_train, "Training"), (X_test_scaled, y_test, "Testing")]
for data, labels, dataset_name in datasets:
# Convert labels to integers
labels = labels.astype(int)
# Predictions
knn_predictions = knn_classifier.predict(data)
knn_conf_matrix = confusion_matrix(labels, knn_predictions)
# Performance Metrics
knn_accuracy = round(accuracy_score(labels, knn_predictions), 3)
knn_precision = round(precision_score(labels, knn_predictions, average='binary'), 3)
knn_recall = round(recall_score(labels, knn_predictions, average='binary'), 3)
print(f"\n{dataset_name} Performance:")
print(f"Accuracy: {knn_accuracy}")
print(f"Precision: {knn_precision}")
print(f"Recall: {knn_recall}")
# Confusion Matrix
group_names = ['True Neg', 'False Pos', 'False Neg', 'True Pos']
group_counts = ["{0:0.0f}".format(value) for value in knn_conf_matrix.flatten()]
group_percentages = ["{0:.0%}".format(value) for value in knn_conf_matrix.flatten() / np.sum(knn_conf_matrix)]
labels = [f"{v1}\n{v2}\n{v3}" for v1, v2, v3 in zip(group_names, group_counts, group_percentages)]
labels = np.asarray(labels).reshape(2, 2)
# Plot Confusion Matrix
plt.figure(figsize=(8, 6))
sns.heatmap(knn_conf_matrix, annot=labels, fmt='', cmap='Blues', cbar=False)
plt.title(f'KNN Classifier Confusion Matrix - {dataset_name} Data')
plt.show()
KNN Performance Metrics:
Training Performance:
Accuracy: 0.881
Precision: 0.91
Recall: 0.944
KNN Performance Metrics:
Training Performance:
Accuracy: 0.881
Precision: 0.91
Recall: 0.944
Testing Performance:
Accuracy: 0.811
Precision: 0.869
Recall: 0.9
Testing Performance:
Accuracy: 0.811
Precision: 0.869
Recall: 0.9
All Models Comparison
# Initialize lists to store metrics
model_names = ["Decision Tree", "Logistic Regression", "KNN CLassifier"]
accuracy_list = []
precision_list = []
recall_list = []
# Append DT metrics to lists
accuracy_list.append(accuracy)
precision_list.append(precision)
recall_list.append(recall)
# Append Logistic metrics to lists
accuracy_list.append(logistic_accuracy)
precision_list.append(logistic_precision)
recall_list.append(logistic_recall)
# Append KNN metrics to lists
accuracy_list.append(knn_accuracy)
precision_list.append(knn_precision)
recall_list.append(knn_recall)
table = PrettyTable()
table.field_names = ["Model", "Dataset", "Accuracy", "Precision", "Recall"]
for model_name, accuracy, precision, recall in zip(model_names, accuracy_list, precision_list, recall_list):
table.add_row([model_name, "Testing", accuracy, precision, recall])
print(table)
+---------------------+---------+----------+-----------+--------+
| Model | Dataset | Accuracy | Precision | Recall |
+---------------------+---------+----------+-----------+--------+
| Decision Tree | Testing | 0.826 | 0.874 | 0.916 |
| Logistic Regression | Testing | 0.802 | 0.803 | 0.997 |
| KNN CLassifier | Testing | 0.811 | 0.869 | 0.9 |
+---------------------+---------+----------+-----------+--------+
+---------------------+---------+----------+-----------+--------+
| Model | Dataset | Accuracy | Precision | Recall |
+---------------------+---------+----------+-----------+--------+
| Decision Tree | Testing | 0.826 | 0.874 | 0.916 |
| Logistic Regression | Testing | 0.802 | 0.803 | 0.997 |
| KNN CLassifier | Testing | 0.811 | 0.869 | 0.9 |
+---------------------+---------+----------+-----------+--------+
Stacked Ensemble
# set base models to stack
base_models = [
('decision_tree', RandomForestRegressor(random_state=17)),
('logistic_regression', LogisticRegression(random_state=17)),
('knn_classifier', KNeighborsClassifier(n_neighbors=5))
]
# define the meta-learner
meta_learner = LogisticRegression(random_state=42)
# create & train the stacking ensemble
stacking_ensemble = StackingClassifier(estimators=base_models,
final_estimator=meta_learner, cv=5)
stacking_ensemble.fit(X_train, y_train)
# make predictions and evaluate the ensemble model
stacked_predictions = stacking_ensemble.predict(X_test)
stacked_accuracy = round(accuracy_score(y_test, stacked_predictions), 3)
stacked_precision = round(precision_score(y_test, stacked_predictions), 3)
stacked_recall = round(recall_score(y_test, stacked_predictions), 3)
# print the results
print("Stacking Ensemble Performance:")
print(f" Accuracy: {stacked_accuracy}")
print(f" Precision: {stacked_precision}")
print(f" Recall: {stacked_recall}")
/Library/Frameworks/Python.framework/Versions/3.12/lib/python3.12/site-packages/sklearn/linear_model/_logistic.py:469: ConvergenceWarning: lbfgs failed to converge (status=1):
STOP: TOTAL NO. of ITERATIONS REACHED LIMIT.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
n_iter_i = _check_optimize_result(
/Library/Frameworks/Python.framework/Versions/3.12/lib/python3.12/site-packages/sklearn/linear_model/_logistic.py:469: ConvergenceWarning: lbfgs failed to converge (status=1):
STOP: TOTAL NO. of ITERATIONS REACHED LIMIT.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
n_iter_i = _check_optimize_result(
/Library/Frameworks/Python.framework/Versions/3.12/lib/python3.12/site-packages/sklearn/linear_model/_logistic.py:469: ConvergenceWarning: lbfgs failed to converge (status=1):
STOP: TOTAL NO. of ITERATIONS REACHED LIMIT.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
n_iter_i = _check_optimize_result(
/Library/Frameworks/Python.framework/Versions/3.12/lib/python3.12/site-packages/sklearn/linear_model/_logistic.py:469: ConvergenceWarning: lbfgs failed to converge (status=1):
STOP: TOTAL NO. of ITERATIONS REACHED LIMIT.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
n_iter_i = _check_optimize_result(
Stacking Ensemble Performance:
Accuracy: 0.844
Precision: 0.883
Recall: 0.928
Stacking Ensemble Performance:
Accuracy: 0.844
Precision: 0.883
Recall: 0.928
stacked_conf_matrix = confusion_matrix(y_test, stacked_predictions)
# Plot Confusion Matrix
plt.figure(figsize=(8, 6))
sns.heatmap(stacked_conf_matrix, annot=labels, fmt='', cmap='Blues', cbar=False)
plt.title(f'Stacked Ensemble Confusion Matrix - Testing Data')
plt.show()
